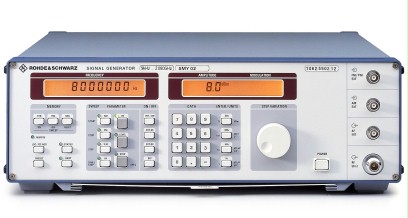

R&S SMY02

The SMY02 Signal Generator is a cost-effective instrument for testing AM, FM, and phiM receivers and for component measurements. It is designed with a comprehensive set of basic signal generator capabilities. As a result, it’s an economical solution for universal use in the lab, production, and servicing environments. – Frequency Range 9 kHz to 2.08 GHz – Frequency Resolution 1 Hz – Modulation Generator 1 Hz to 500 kHz – Low RF Leakage (<0.1 µV) - SSB Phase Noise <-114 dB at 1 GHz, ?f = 20 kHz - Level Range -140 to +13 dBm, Over Range up to 19 dBm - Level Accuracy Better than 1 dB - GPIB - AM, FM, phiM, and Pulse Modulation - RF Overload Protection 50 W - Non-volatile Storage for up to 50 Complete Front-panel Setups
