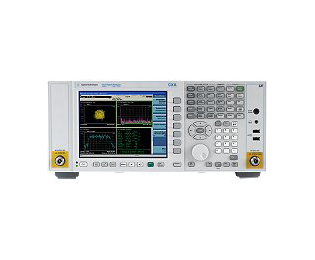

HP-Agilent/Keysight N9000A

Functionality – – 9 kHz to 3, 7.5, 13.6 or 26.5 GHz- internal preamplifier options up to 26.5 GHz – 10 MHz (standard), 25 MHz (optional) analysis bandwidth – Optional built-in tracking generator 3 or 6 GHz (up to 7.5 GHz models) – Optional additional 75 ohm input connector, 1.5 GHz (up to 7.5 GHz models) Performance – ±0.5 dB absolute amplitude accuracy – Up to +15 dBm third order intercept (TOI) – –163 dBm at 1 GHz, –147 dBm at 26.5 GHz displayed average noise level (DANL) with preamplifier – Up to 73 dBc W-CDMA ACLR dynamic range (with noise correction on) Measurement application & software – Supports >25 measurement applications, covering cellular communication, wireless connectivity, digital video, and general purpose – Advanced analysis of up to 70 signal formats, software runs inside the CXA with 89600 VSA software – Keysight’s PowerSuite one-button power measurements included as standard Automation & communication interface – LXI compliant, SCPI, and IVI-COM – USB 2.0, 1000 Base-T LAN, GPIB – Programming remote language compatibility with ESA and other X-Series – Common X-Series user interface / Open Windows 7 operating system (standard) – – Migrate your existing CXA from Windows XP to Windows 7
