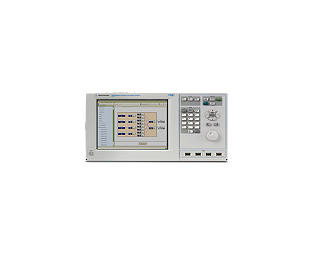

HP-Agilent/Keysight N5106A

Baseband performance – Up to 160 MHz modulation and signal capture bandwidth – 512 Msa playback and signal capture memory per channel – Up to 6 BBGs and 16 faders for interference, diversity and MIMO test Standards compliant signal creation – Run Signal Studio software on the PXB in a familiar Windows environment – LTE, HSPA, W-CDMA, GSM/EDGE, TD-SCDMA, Mobile WiMAX™, WLAN, digital video, GPS, GLONASS, and DC-HSPA with 8960 (E5515C) wireless communication test set – Real-time uplink LTE FDD and LTE TDD signal creation for 3GPP eNB receiver verification tests – Connect with SystemVue software or play back your own MATLAB waveforms Advanced channel emulation – Fade RF, digital I/Q, ESG and PXB generated signals – Up to 160 MHz fading bandwidth or 24 paths per fader – Single channel, dual channel, 1×2, 1×4, 1×8, 2×1, 2×2, 2×4, 2×6, 4×2, 2×8 and 4×4 MIMO – Connect to the 8960 Series 10 (E5515C) wireless communication test set Comprehensive channel correlation settings – Select standard-based channel models or modify them for the latest wireless formats – Calculate correlation coefficients based on antenna setup – Input correlation coefficients into custom correlation matrix – LTE channel models for MIMO OTA test including SCME Urban Micro-Cell, Macro-Cell, and WINNER II
