Anritsu MS2668C

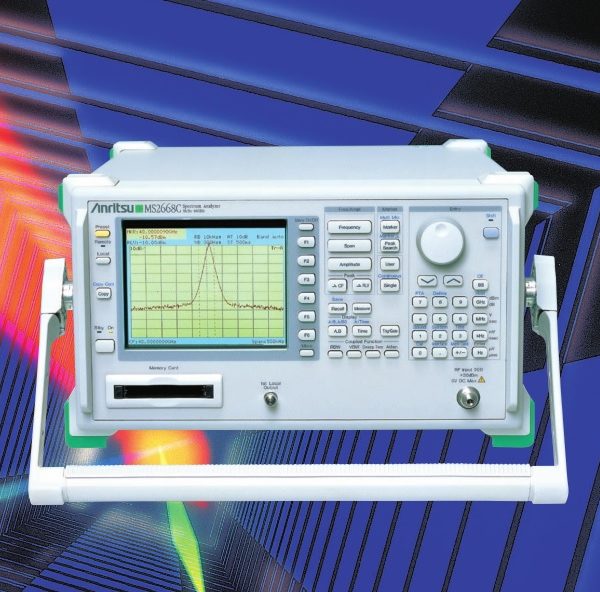

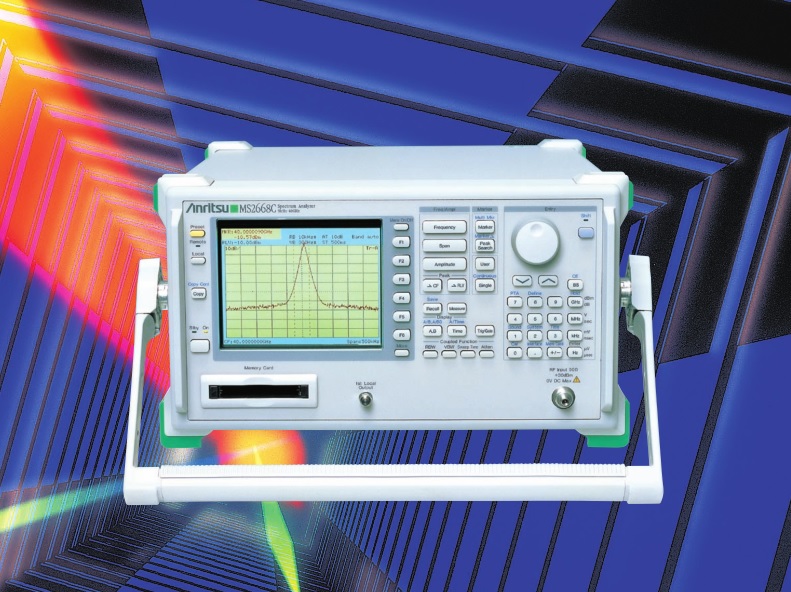

The MS2668C Portable Spectrum Analyzer is a synthesized spectrum analyzer covering a wide frequency range from 9 kHz to 40 GHz. It has superior basic performance such as high C/N ratio, low distortion, and high frequency/level accuracies and is easy to operate. It has a Measure function for evaluation of radio equipment that includes a frequency counter and one-button evaluation of C/N, adjacent channel power, occupied frequency bandwidth, and burst average power. It has a large selection of options and application software packages. – Frequency Range 1) 9 kHz to 40 GHz 2) Extend range to 18 – 110 GHz with external mixers – Rugged MIL-STD-28800 Class 3 1) Compact and Lightweight (15kg or less in standard configuration) 2) Portable for installation and maintenance – Frequency Counter with 1 Hz resolution – Superior RF performance specifications – Bright full-color screen visible in direct sunlight – Remote Control Capability using SpectRe software (included) 1) Enables remote monitoring, control, and data collection. 2) Control measurement parameters on the fly and see results immediately.
