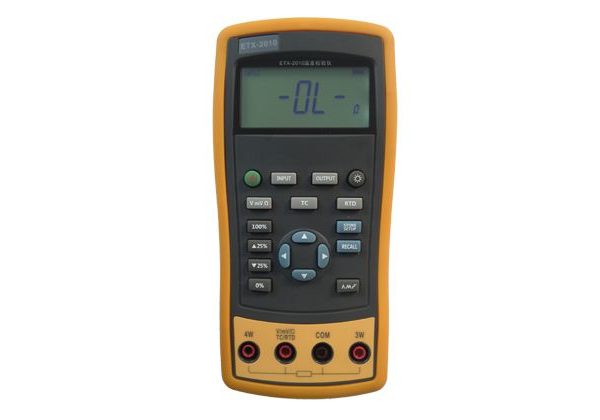

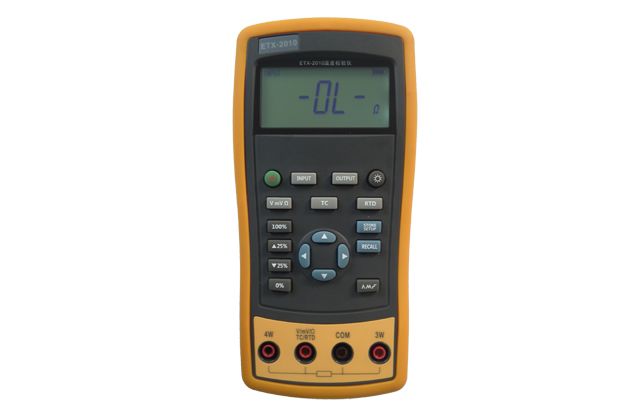

Wellzion ETX-2010

ETX-2010 is a Digital Calibrator (Temperature Calibrator). – Temperature Calibrator,0.025% of reading + 2 Counts Accuracy – Measure DC V, DC mV, resistance ,TC and RTD. – Outputs resistance, simulation of TC and RTD. – Automatic and manual cold end temperature compensation for TC. – Manual stepping, automatic stepping, 0~100% phase step and ramp output. – Super-strong protection:The waterproof grade is IP67. Automatic protection against the signal terminals connect to the 220V. – DC V 0~30V – DC mV 0~120mV – Accuracy (% of reading + Counts)0.02+2 – Resistance 0~3200O – RTD Pt100, Pt1000, Cu50, Cu100 – TC E,J,K,T,B,R,S,N – Others Stepping output, ramp, phase step output, user-defined range – Dimensions 185mm*93mm*47mm – Weight 350g
