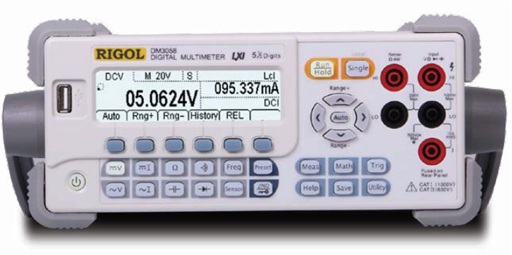

RIGOL DM3068

The Rigol DM3068 is a high quality digital benchtop multimeter from the DM3060 series with a very high sampling rate of up to max. 10 kSa/s. The Rigol multimeter comes with very well designed and easy to use controls which also offer comprehensive ease-of-use functions for all measurement tasks. The menu structure is very intuitive to use. The device helps you obtain precise measurement results in a wide range of applications. The LCD with its 256×64 pixels is highly legible and provides a good overview of the many individual functions. It has a maximum resolution of 6½ digits (maximum display value 2.400.000). Delivery including 2 probes, USB cable, pc software, power cable, 2 replacement fuses and manual. Function Max. Reading 2.400.000 (6½ digits) LCD 90 mm × 25 mm (256x64Pixel) Sampling rate 10 kSa/s Memory Depth (volatile) 512k readings (History) Memory Depth (non volatile) 10 groups of 5000 readings 5 groups of 5000 readings (Sensordata) Connections RS-232, USB Device, USB Host, Ext.Trig., VM Comp, 10/100MBit LAN, GPIB Details Rigol DM3068 Digital Multimeter Power supply 230 V / 50 Hz / 110 V / 60 Hz mains connection Safety standard CAT II/600 V Dimensions 290.5 mm × 231.6 mm × 107.0 mm (11.44″ × 9.12″ × 4.21″) Weight without accessories / packaging 2500 g (5.512 lbs) Weight with accessories / packaging 4465 g (9.844 lbs) Warranty 3 years
6 1/2 digit true RMS precision table multimeter
