Rigol DG5102

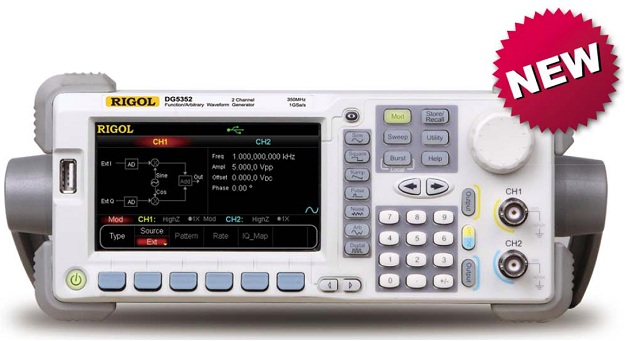

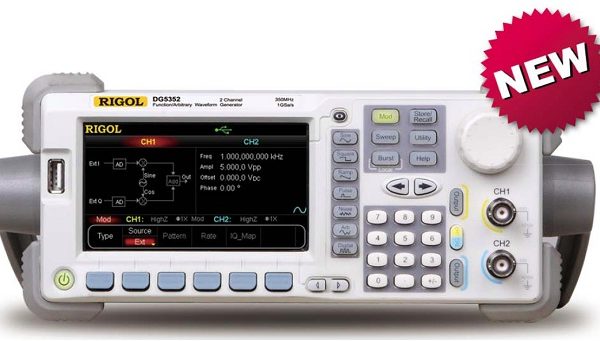

The Rigol DG5102 is a 2 channel Function / Arbitary Waveform Generator to create high quality signals up to 100 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface. The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface. Delivery including USB cable, pc software, power adapter and manual. Common Data Generator Function / Waveform Generator Rigol DG5102 Display 4.3″ TFT LCD with 16M true color Resolution 480 × 272 Pixel Interfaces – USB-Host (for USB stick i.e. to save/load waveforms) – USB for a PC connection – LAN for network connection – GPIB (IEE-488, General Purpose Interface Bus) Dimensions (W × H × D) 263 mm × 107 mm × 505 mm (10.35″ × 4.21″ × 19.88″) Weight 4.3 kg (9.48 lbs) Supported operation systems in clarification Details Function Function / Waveform Generator Rigol DG5102 Channels 2 Signal Output Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise Vertical Resolution 14 bit Amplitudes 5 mVpp ~ 10 Vpp (50 O) DC Offset ±5 V (50 O) Sample Rate 1 GSa/s Frequency Range Sine 1 µHz – 100 MHz Frequency Range Rectangle 1 µHz – 100 MHz Frequency Range Pulse 1 µHz – 50 MHz Frequency Range Ramp 1 µHz – 3 MHz Frequency Range Arbitrary 1 µHz – 50 MHz Frequency Range Noise 100 MHz (-3db) Resolution 1 µHz
