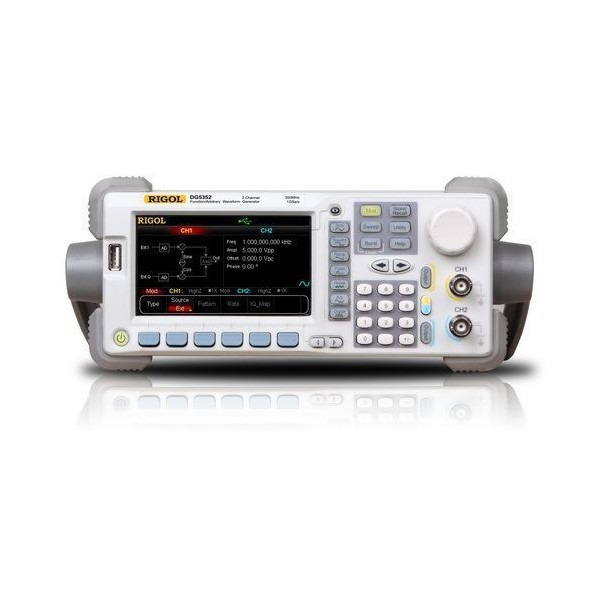

Rigol DG5072

DG5072 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5072 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability. – 70 MHz bandwidth – 1 GSa/Sec waveform output – 14 bit vertical resolution – 128 Million Points of Arbitrary Waveform Memory – Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats – Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB – Options including output amplifier (PA-1011), digital generator (DG-POD-A), and frequency hopping capability
