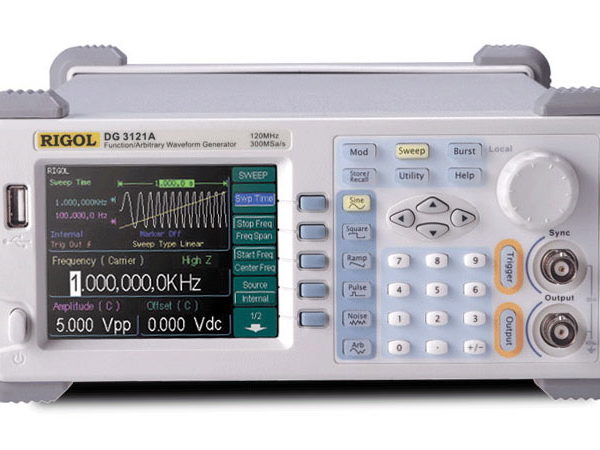

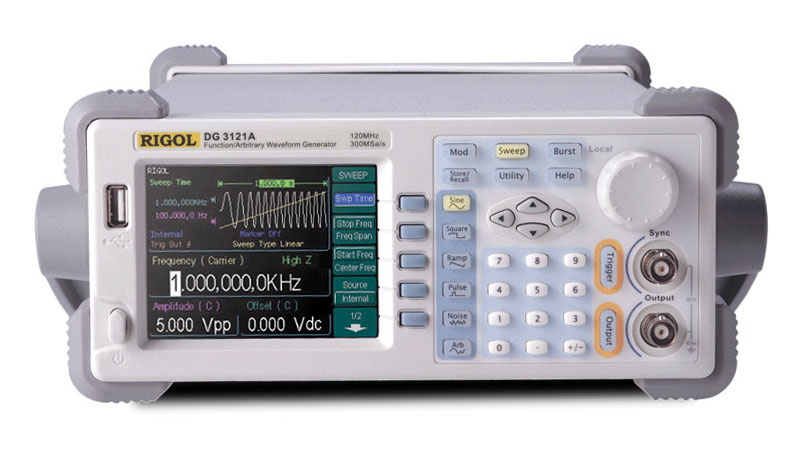

Rigol DG3121A

The Rigol DG3121A is a Function / Arbitary Waveform Generator to create high quality signals up to 120MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface. The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface. Delivery including USB cable, pc software, power adapter and manual. Common Data Generator Function / Waveform Generator Rigol DG3121A Display 3.8″ STN LCD with 64 colors Resolution 320 x 240 Pixel Interfaces – USB-Host (for USB stick i.e. to save/load waveforms) – USB for a PC connection – LAN for network connection – GPIB (IEE-488, General Purpose Interface Bus) Dimensions 231mm x 365mm x 108mm (9.09″ x 14.37″ x 4.25″) Weight 3.5 kg (7.72lbs) Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) Details The complete list of technical specifications you can find in chapter 5 “Specifications” of the manual. Function Function / Waveform Generator Rigol DG3121A Channels 1 Signal Output Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise Vertical Resolution 14 bit Amplitudes 10mVpp ~ 10Vpp (50O) 20mVpp ~ 20Vpp (high impedance) DC Offset ±5V (50O) ±10V (high impedance) Sample Rate 300 MSa/s Frequency Range Sine 1 µHz – 120 MHz Frequency Range Rectangle 1 µHz – 60 MHz Frequency Range Pulse 500 µHz – 30 MHz Frequency Range Ramp 1 µHz – 1 MHz Frequency Range Arbitrary 1 µHz – 25 MHz Frequency Range Noise 50 MHz (-3db) Resolution 1 µHz
