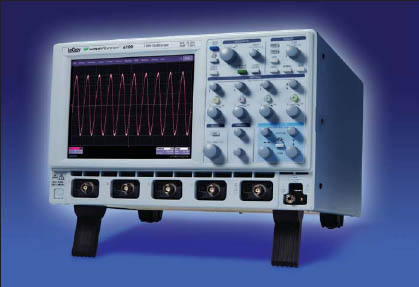

LeCroy 6030

350 MHz, 500 MHz, 1 GHz and 2 GHz Bandwidths 5 GS/s on All Channels (10 GS/s on 2 Ch for 6100 and 6200) 1 Mpts on All Channels, Expandable to 12/24 Mpts Compact and Lightweight Easy User Interface New 2.5 mm Passive Probe Touch Screen Interface Vertical Controls for Each Channel USB 2.0 and 802.3xx LAN Ports Open Windows 2000

• Performance Characteristics of the MS610BForm Factor Benchtop
• Input Impedance 50 Ohm
• Minimum Frequency 10 kHz
• Maximum Frequency 2 GHz
• Zero Span Yes
• Minimum Span 0.1 MHz
• Maximum Span 1 GHz
• Minimum Sweep Time 10 ms
• Maximum Sweep Time 10 s
• Minimum Resolution Bandwidth 1 kHz
• Maximum Resolution Bandwidth 1 MHz
• Resolution Bandwidth Steps 1/3/10
• Minimum Video Bandwidth 100 Hz
• Maximum Video Bandwidth 10 kHz
• Video Bandwidth Steps 1/10/100
• Maximum Single-Side-Band Noise -70 dBc/Hz
• Maximum Safe AC Input 20 dBm
• Maximum DC Input 50 V
• Maximum Displayed Average Noise -115 dBm
• Maximum Amplitude Uncertainty 1.5 %
• Trigger Modes Freerun,TTL
• Connector type (main signal) Type-N(f)
• Cal Output Connector Type BNC(f)
• Probe Power No
• Noise Source Driver No
