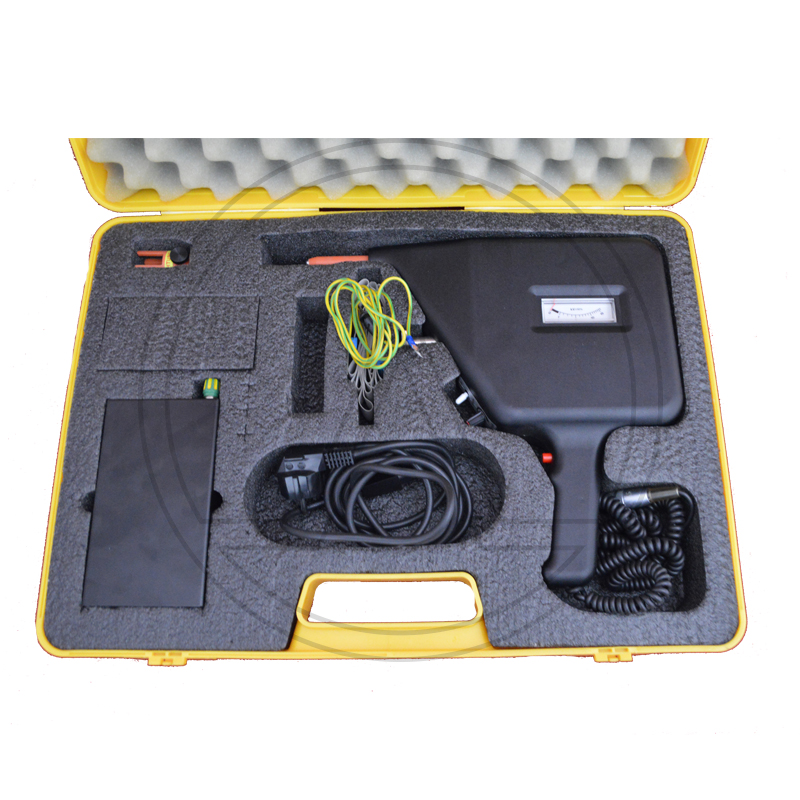

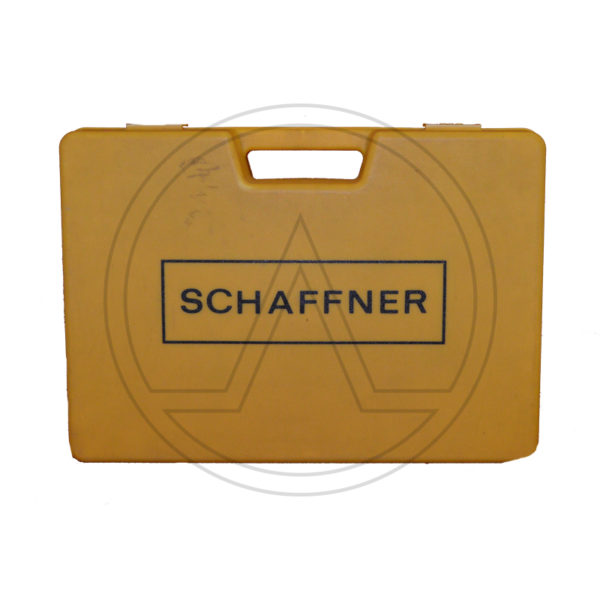

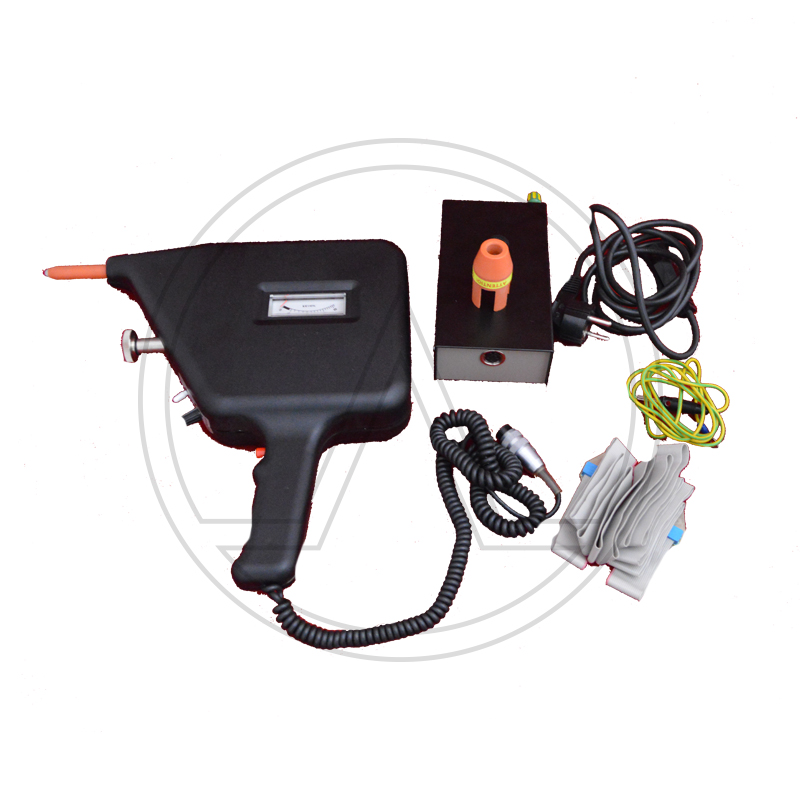

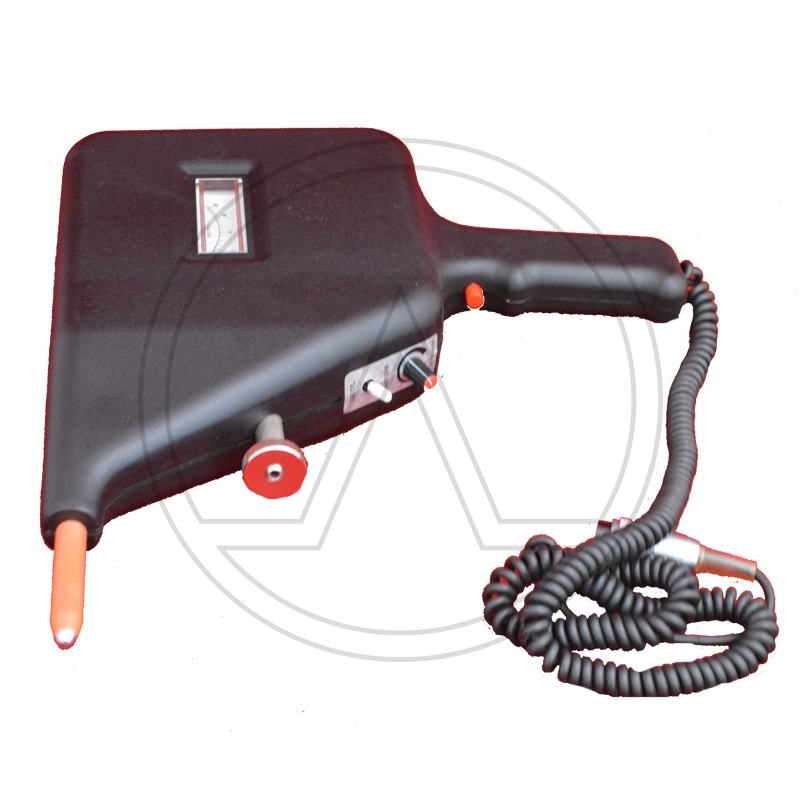

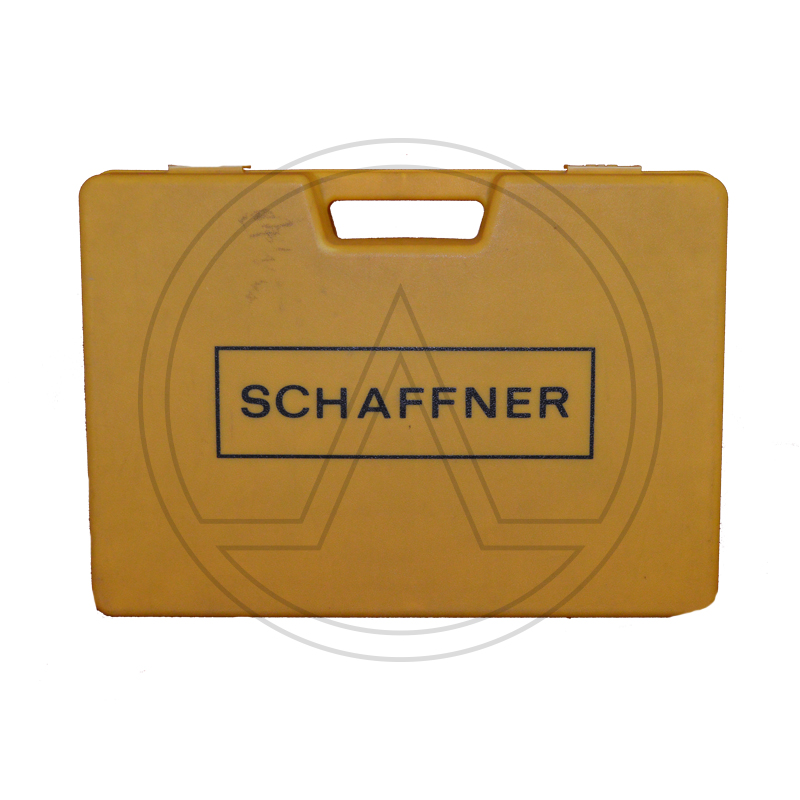

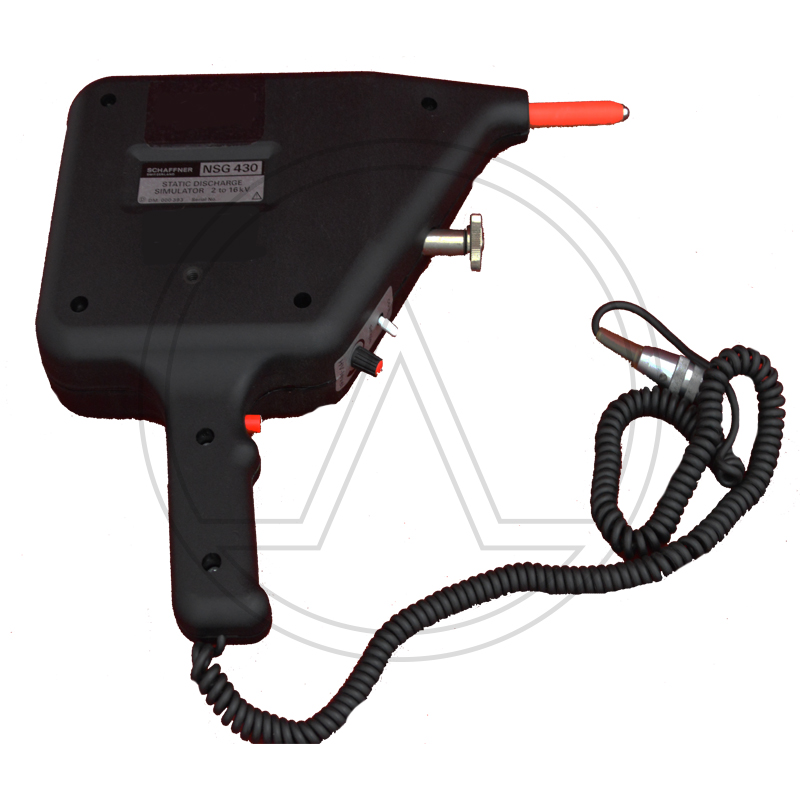

TESEQ SCHAFFNER NSG 430

Electrostatic Discharge Simulator

Rise Time: 5ns ±30% at 2kV
Discharge voltage: 2 – 16.5kV
Polarity: positive / negative – non switchable
Discharge capacitor Co: 150pF ± 10%
Discharge resistor Ro: 150 ohms ± 5%
Mode of operation: single/continuous (20 Hz)
For testing per IEC 801-2 / 1984
Datasheet
