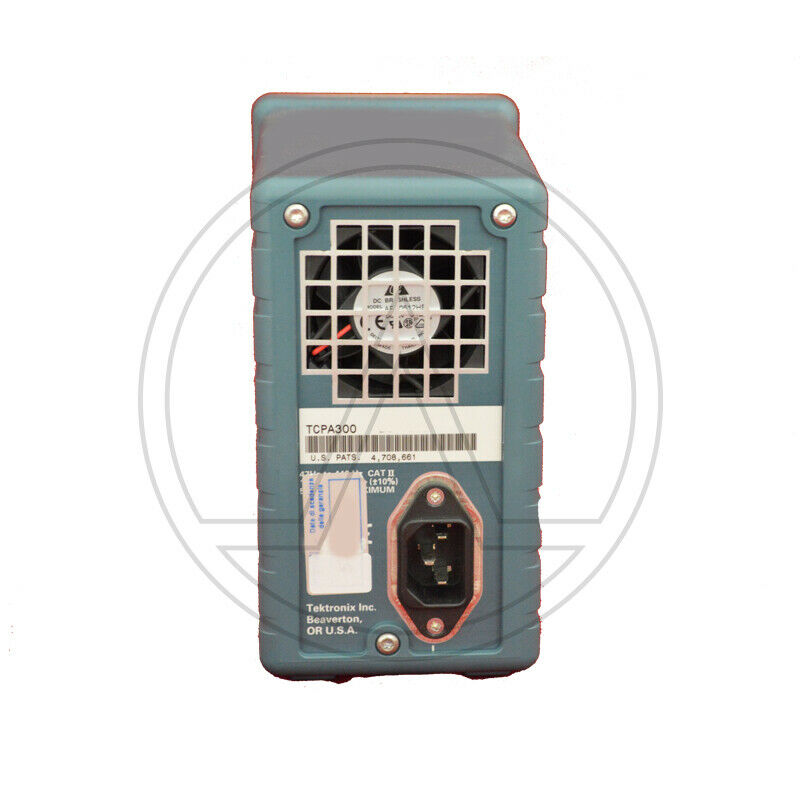

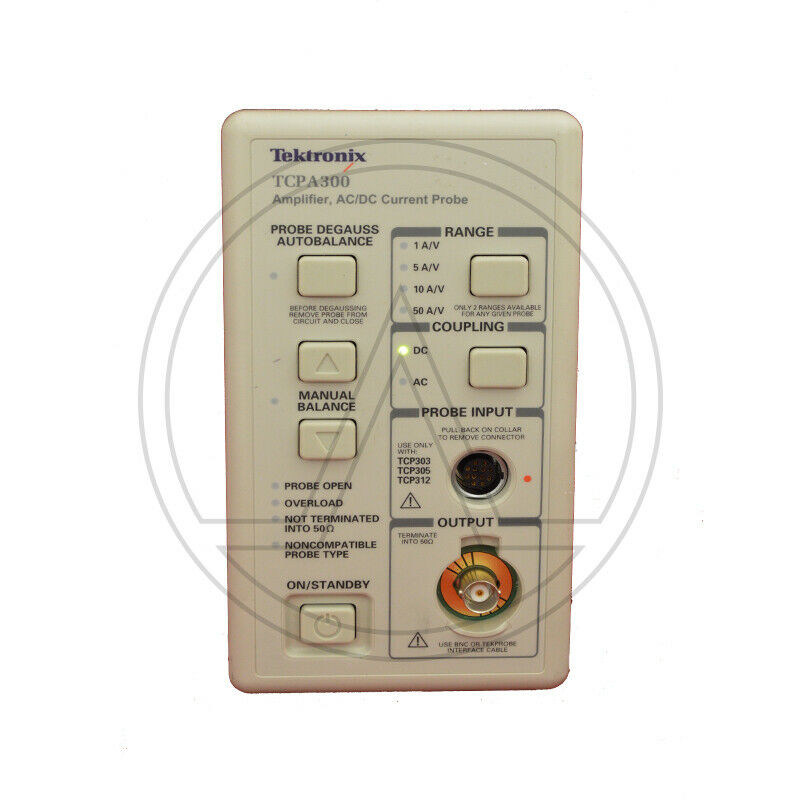

TEKTRONIX TCPA300

Current Probe Amplifier.
The TCPA300 from Tektronix is a current probe amplifier. This amplifier when used with TCP312A, TCP305A and TCP303 probes, provides a wide range of current measurement capability and spans the gap between low level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30A, 50A and 150A DC continuous and for even higher current levels. Higher frequency performance is available with TCP312A providing greater than or equal to 100MHz bandwidth and maximum current of 30A DC. The TCPA300 is approved by UL3111-1 first edition, CAN/CSA C22.2 number 1010.1-92, EN61010-1:2001, EC Council Directive 89/336/EEC, FCC Part 15, Subpart B class A and AS/NZS 2064.1/2 standards.

DC to 100MHz maximum bandwidth
Automatic control and onscreen scaling and units
AC/DC input coupling
Low insertion impedance reduces device under test loading
Split core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions
Low DC drift and noise allows improved low level current measurements
