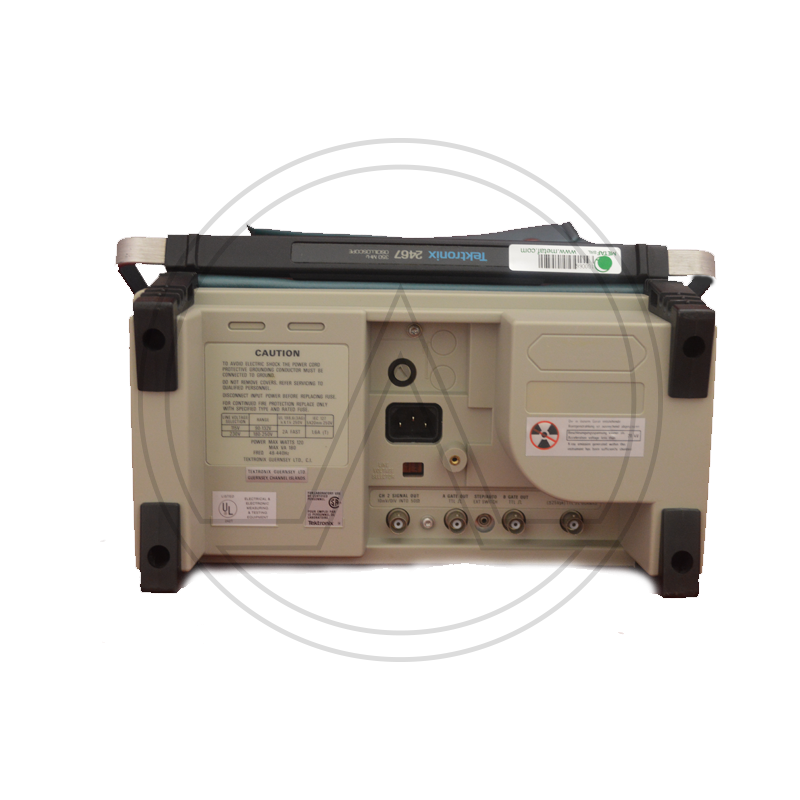

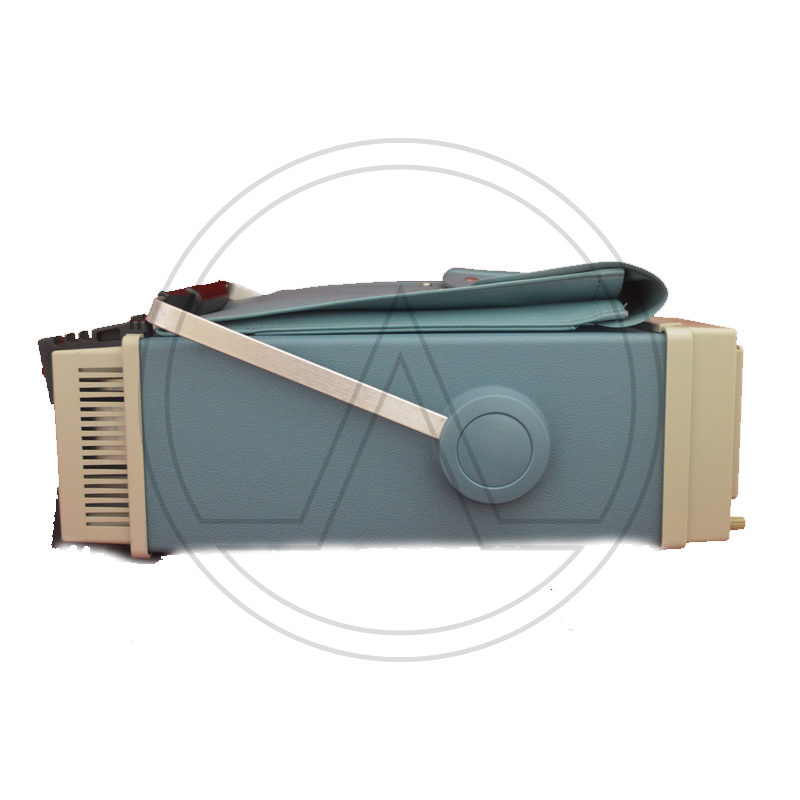

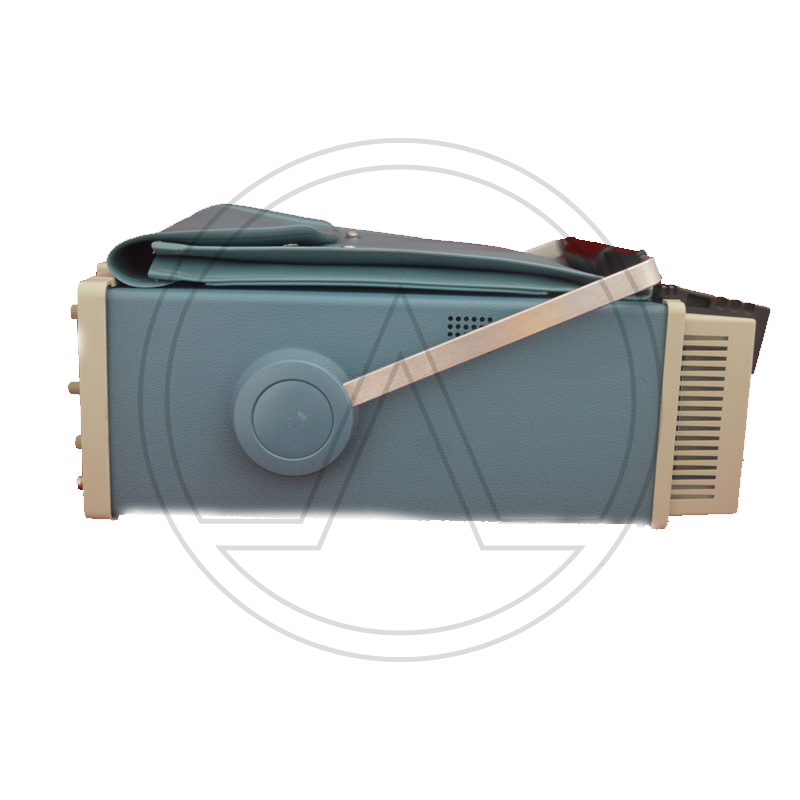

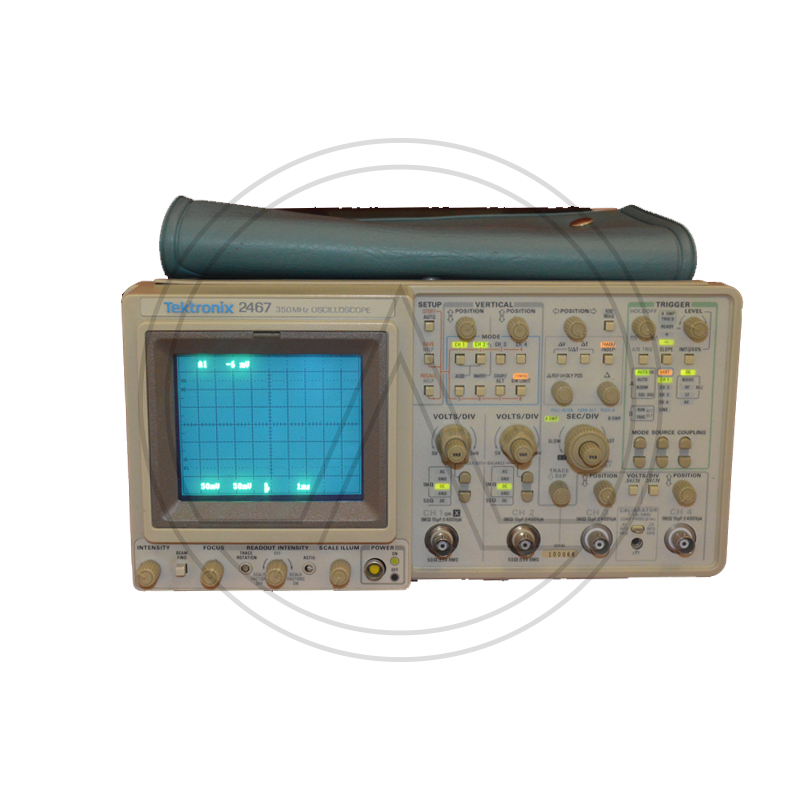

TEKTRONIX 2467

TEKTRONIX 2467 FOUR-CHANNEL 350 MHz PORTABLE OSCILLOSCOPE
The 2467 is the same as the 2465A, except that the 2465A uses a conventional CRT while the 2467A uses a micro-channel plate CRT. The MCP CRT enables bright traces at fast sweep rates, particularly with one-shot or low repetition rate signals.

Bandwidth 350 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
