TEKTRONIX 2465A

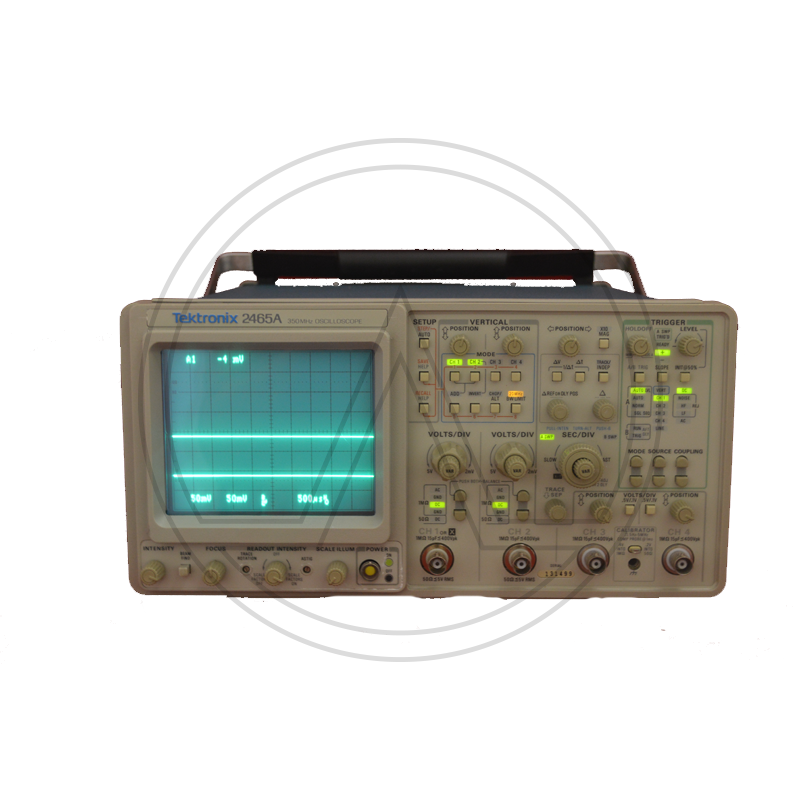

The Tektronix 2465A is a four-channel 350 MHz portable oscilloscope. The 2445A and 2455A are 150 and 250 MHz versions.
The horizontal amplifier in the 2465A was designed by Art Metz and Ken Schlotzhauer.
Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.

Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
