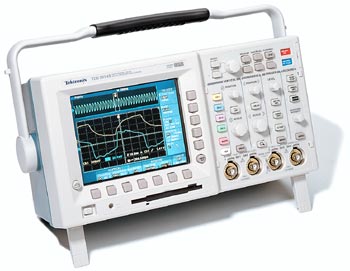

Tektronix TDS3014

Digital Phosphor Oscilloscope – Bandwidth 100 MHz – Number of Channels 4 ch – Form Factor Benchtop – Trigger Source External,Internal – One ch. only max. sampling rate 1.25 GSa/s – Maximum Input Voltage 150 Vrms – Max. Record Length 10000 pt/sec Min/Max. Vertical Sensitivity 1 mV/div to 10 V/div – Number of Bits 9 bits – Input Impedance 1 MOhm – 50 Ohm (alternate) – Input Coupling AC,DC,GND – Display Type Color LCD – Display modes Dot,Persistence,Vector
