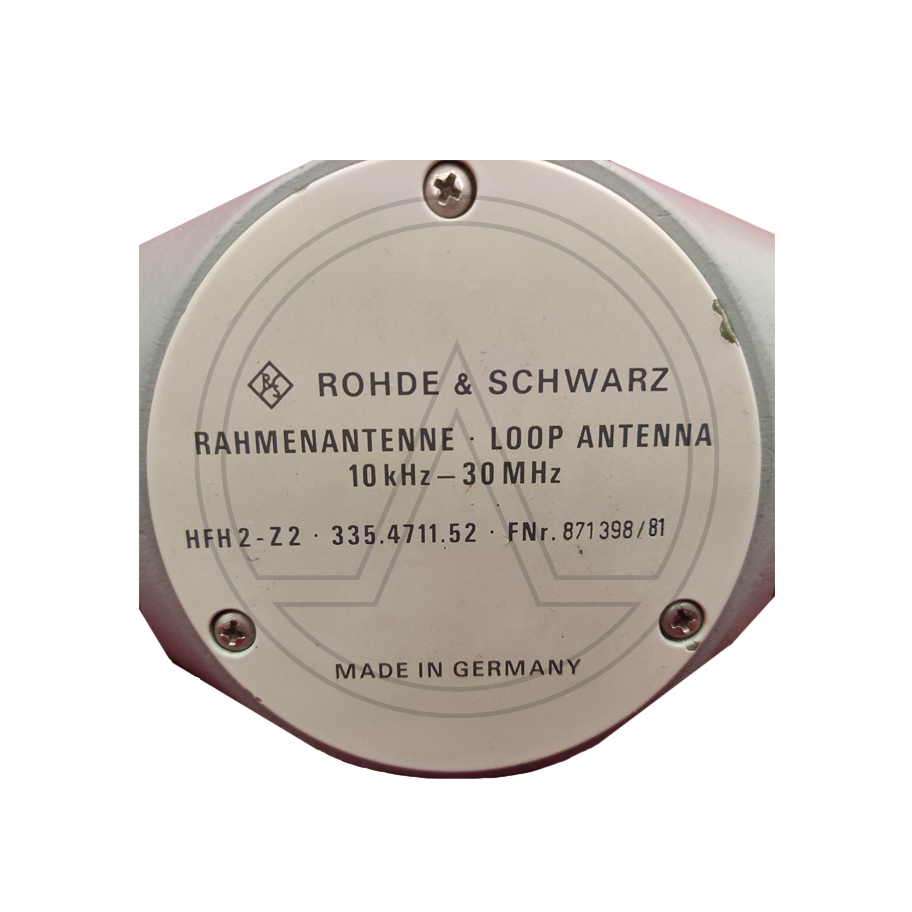

ROHDE & SCHWARZA HFH2-Z2

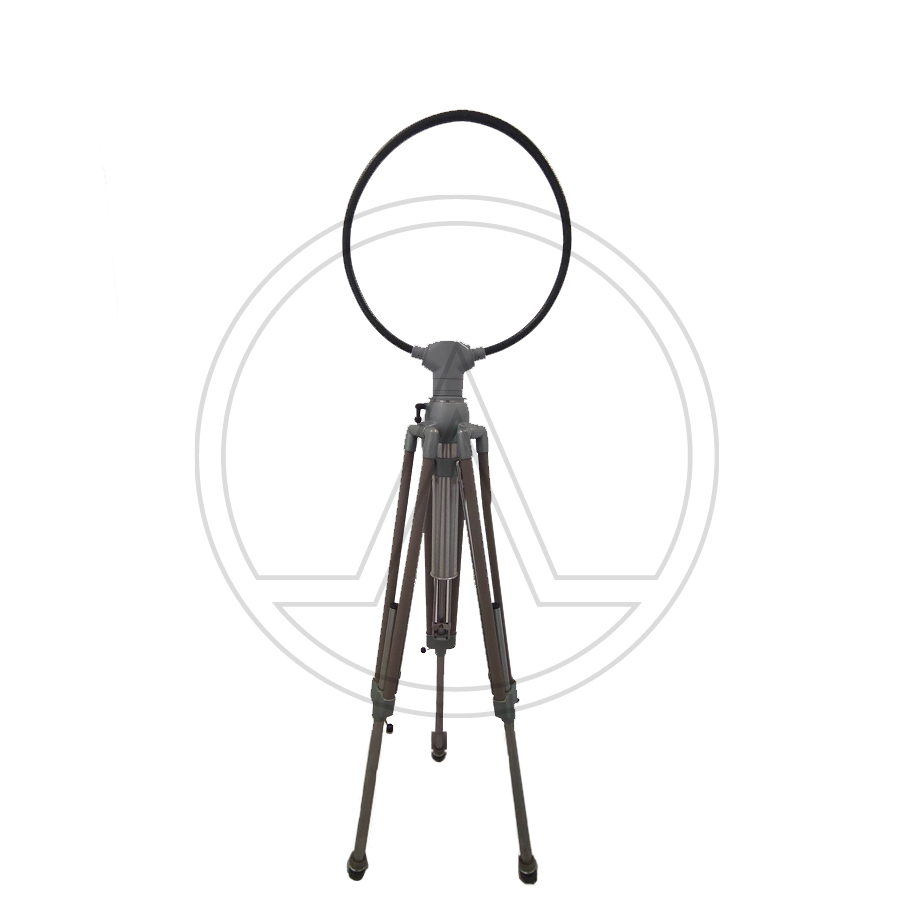

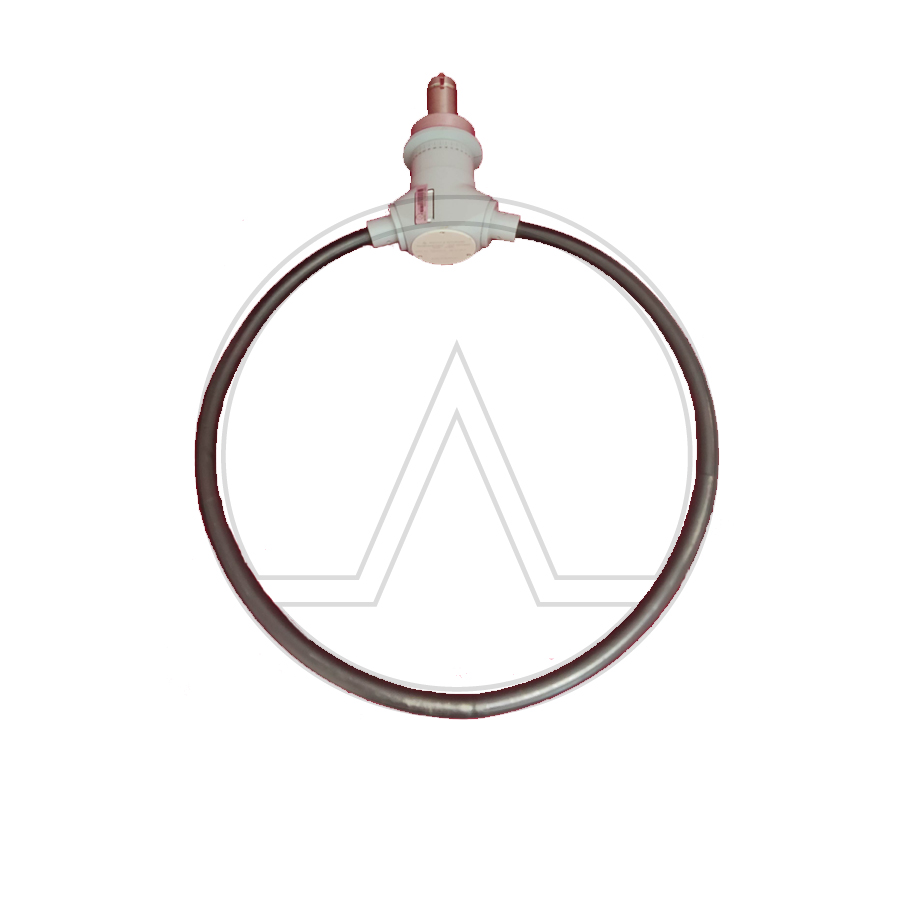

The R&S®HFH2-Z2E 10kHz – 30MHz active loop antenna measures the
magnetic field strength in the LF, MF and HF range. It can
be used for EMI measurements in line with various standards
(i.e. CISPR, MIL, FCC, ANSI, ETSI).
Each antenna is individually calibrated.
It is characterized by an almost frequency-independent
antenna factor and very high sensitivity.
In strong field environments, an attenuator can be activated to reduce distortion. An integrated RF detector with a
threshold circuit reports overload of the antenna.

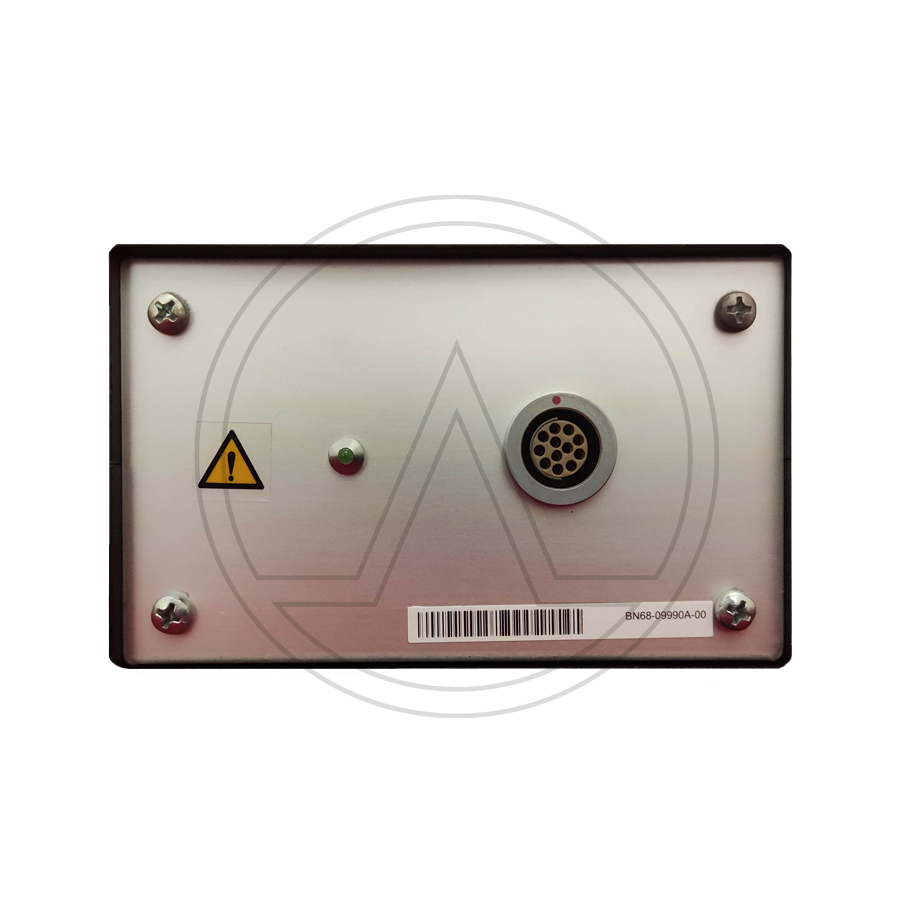

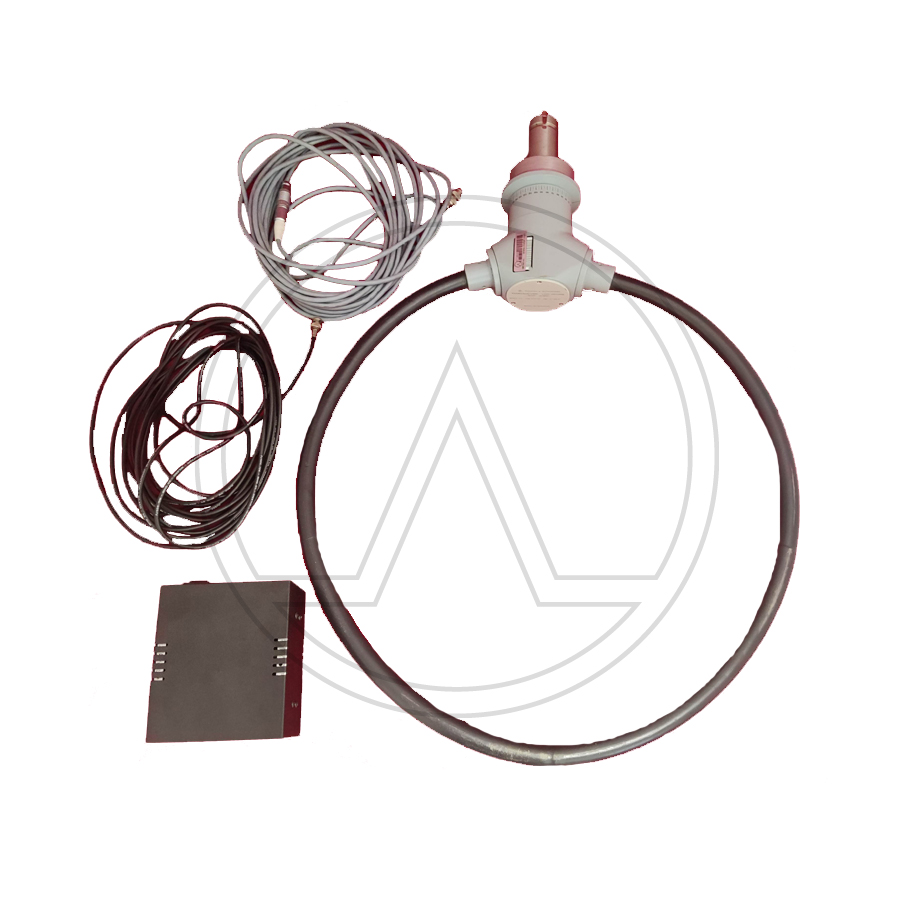

The antenna is supplied via a coaxial cable using the op-
tional R&S®IN600 bias unit.
Key facts
► Wide frequency range
► High sensitivity
► Wide dynamic range
► Compact design
► Integrated overload warning
► R&S®IN600 bias unit for power supply via coaxial cable
available
► No batteries needed
► Individual calibration certifi cate supplied with antenna
► Virtually constant antenna factor
