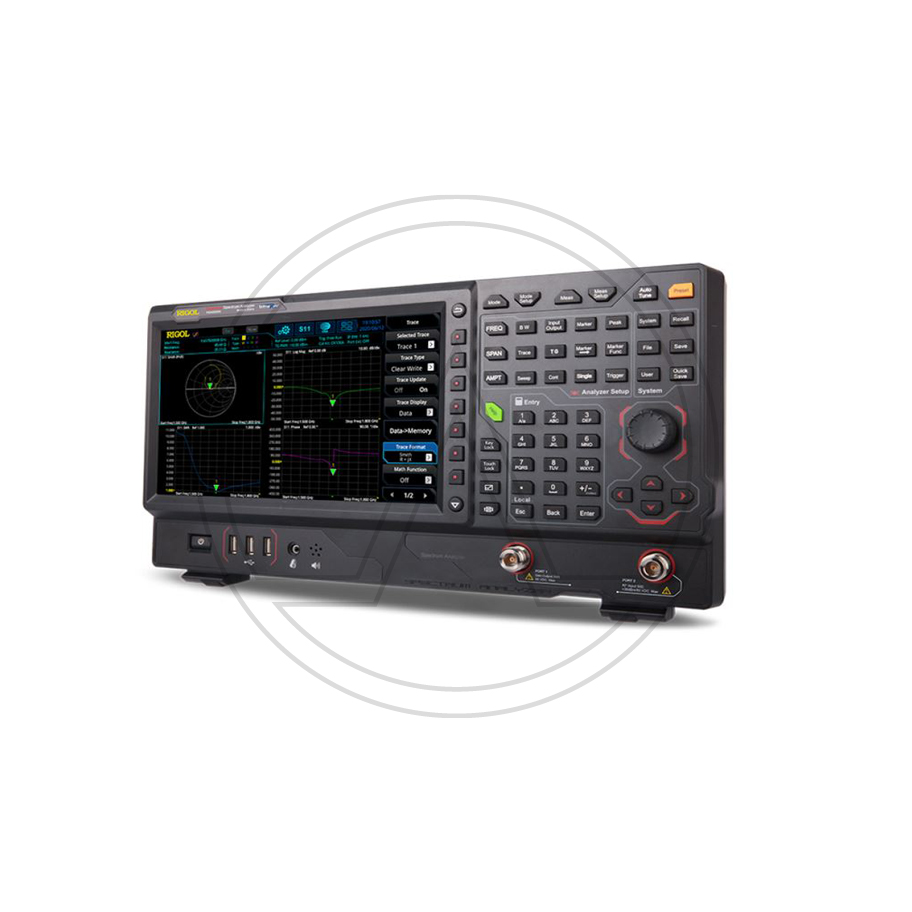

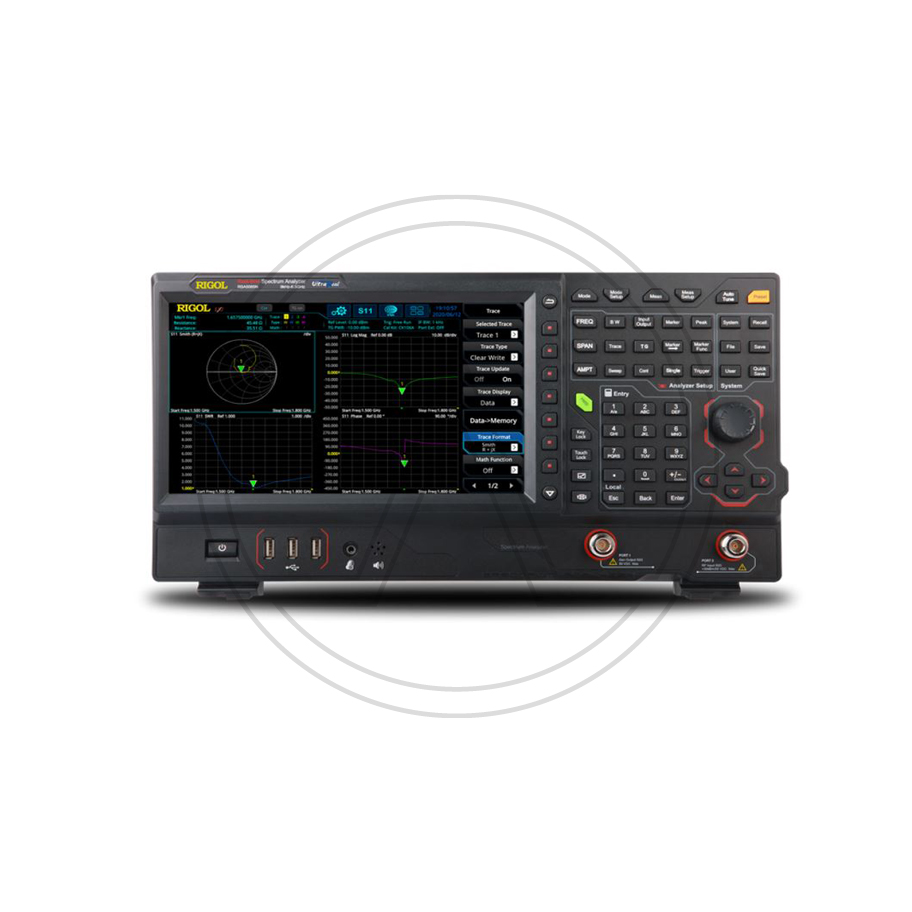

RIGOL RSA5032N

For all new order of RSA5000N versions we providing free of chargeand Pre-Amplifier Option (RSA5000-B40 and RSA5000-PA)

The Real-Time Spectrum Analyzers of the RSA 5000 family simplify the monitoring and characterization of RF devices such as, for example, WiFi and Bluetooth.

The RSA5000 series real-time spectrum analyzer integrates in a single instrument five measurement modes to fully address all the demands posed by the recent and increasingly sophisticated RF test requirements.
In addition to the traditional GPSA mode, EMI, RTSA, VSA and VNA modes are offered. This tool reduces the time and cost of RF test development and with its performance greatly improves the development and testing of RF products. The user interface is clear and allows you to operate in different ways, buttons on the front panel, touch screen, mouse and keyboard. Remote communication interfaces are also available.
It is a very versatile tool and can be used with excellent results indifferently in education, in R&D, in industrial production.

Features:

-Ultra-Real technology
-Displayed average noise level (DANL): <-165 dBm (typical)
-Phase noise: <-108 dBc/Hz (typical)
-Level measurement uncertainty: <0.8 dB
-Min. RBW 1 Hz
-Multiple measurement modes
-Various advanced measurement functions
-Multiple trigger modes and trigger masks
-Density, spectrogram, and other display modes
-PC software options
-10.1'' capacitive multi-touch screen, supporting touch gestures

-USB, LAN, HDMI and other communication and display interfaces

Datasheet
