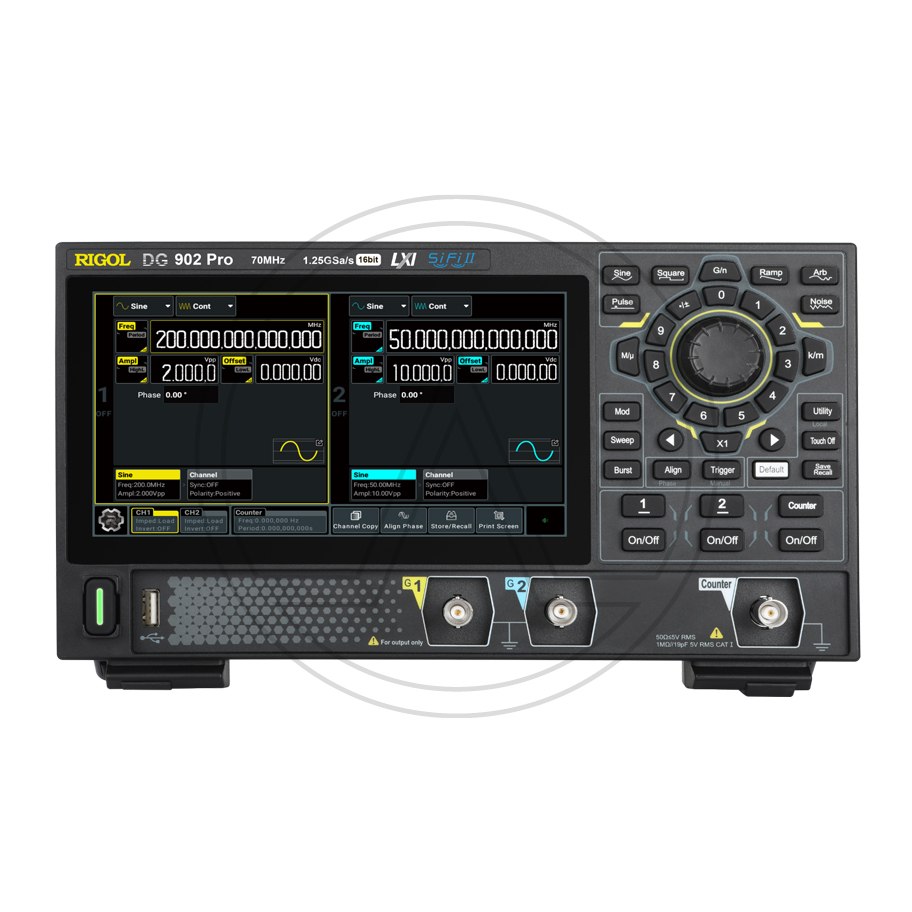

RIGOL DG902 PRO

2 channel function / arbitrary waveform generator with 70 MHz bandwidth, 1.25GSa/s and 16 Mpts（32Mpts opt.) memory,EU Cable

• Max. sample rate: 1.25 GSa/s
• Max. output frequency: 70 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 16 Mpts/CH (32
Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 1 GHz

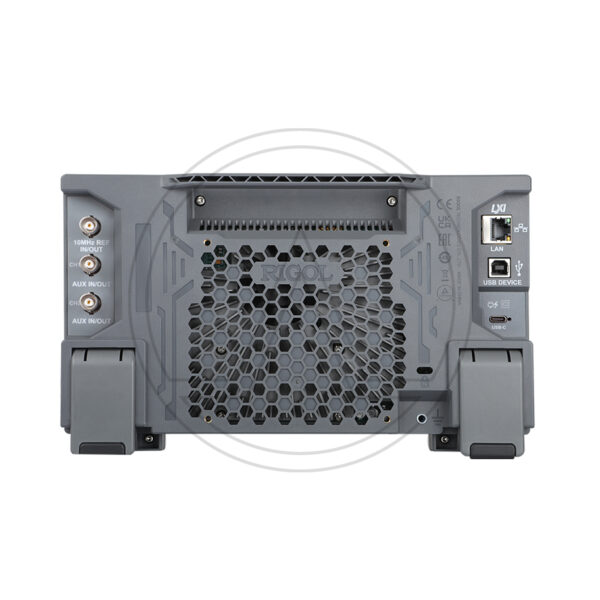

• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying
testing requirements in the field
• Standard Web Control function for easier remote cooperation

Datasheet
