Tektronix P6150

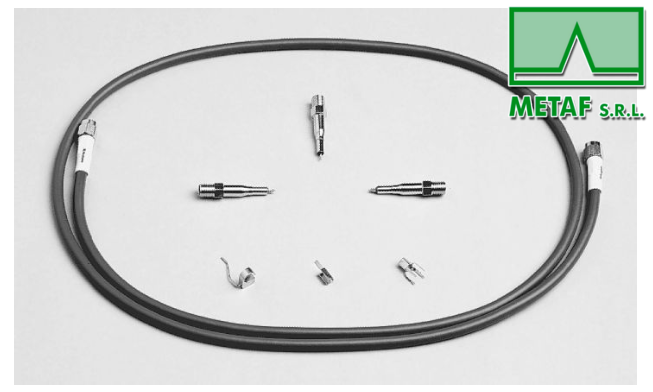

The P6150 is a 9 GHz bandwidth, 10X attenuation, low impedance probe designed for use with the SD2X family of Sampling/TDR plug-ins. The probe consists of interchangeable, screw-in attenuator tip assemblies (1X and 10X) and an SMA-to-SMA probe cable. An assortment of circuit and grounding attachments is included to optimize attachment to the device under test while maintaining high signal integrity. – High-speed device characterization in microwave communication, signal processing and logic applications- – Propagation delays for ECL, GaAs and other logic circuitry and devices- – Circuit board impedance testing (TDR)- – High-speed sampling systems.
