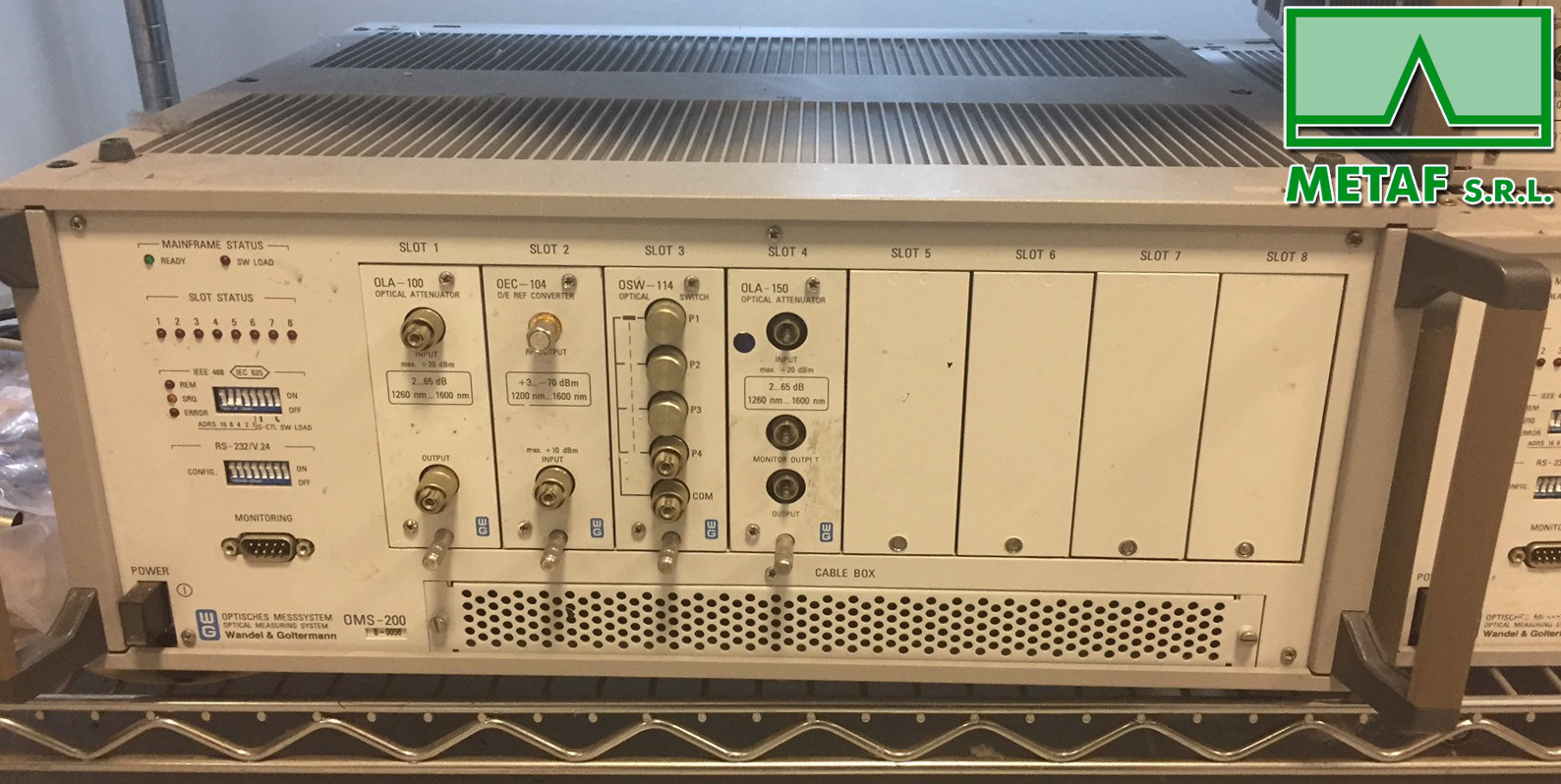

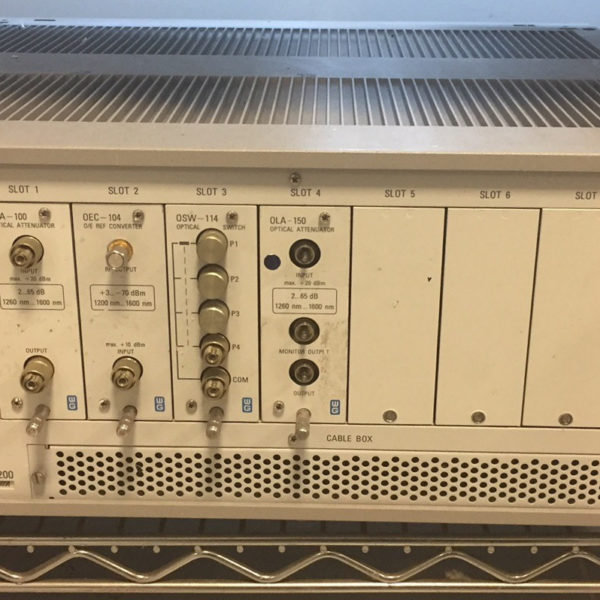

W&G OMS-200

The OMS Optical Measuring System is an economical, future-oriented solution for most fiber optics measurements in the telecom and datacom sectors. The modular design of the system means that it can be easily adapted for different applications. A wide variety of modules is available, including sources, power meters, attenuators and reflection meters. The application software built into the OMS firmware allows execution of automatic test sequences with no additional programming work. OMS is based on a strict division between measurement and evaluation/display functions. The modules handle the measurement functions, while the mainframe evaluates the results and communicates with the outside world. With this concept the number of available modules can grow to handle new measurements. The OMS-150 is best suited to manual measurements or tests of a random sampling of DUTs (Devices Under Test). This mainframe is equipped with a high-contrast 5.5 color TFT liquid crystal display which allows straightforward manual operation with softkeys and direct display of the results. The OMS-150 accepts up to three measurement modules and is the most economical solution for laboratory applications.
