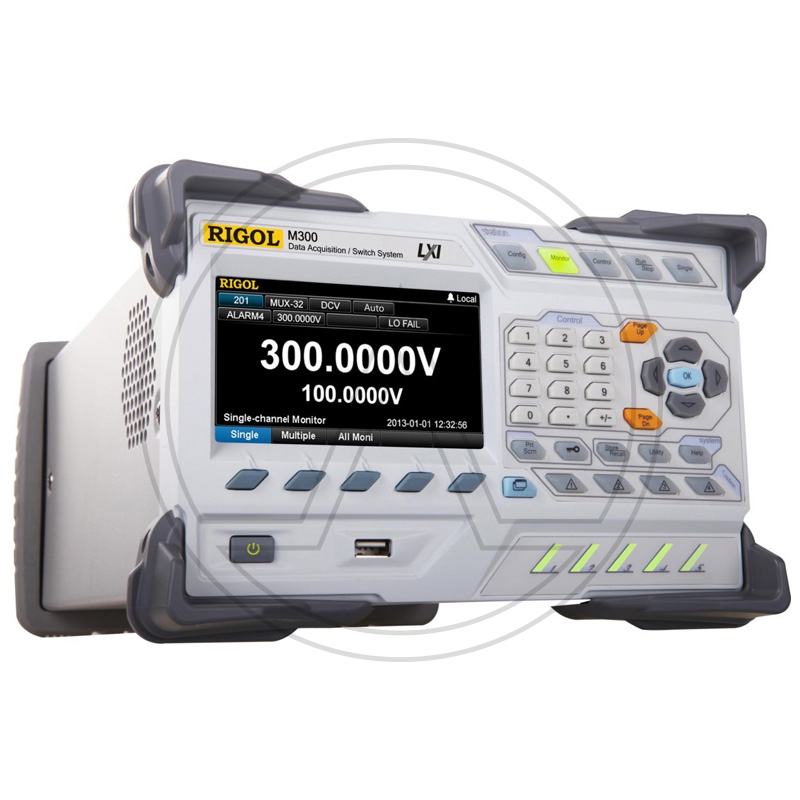

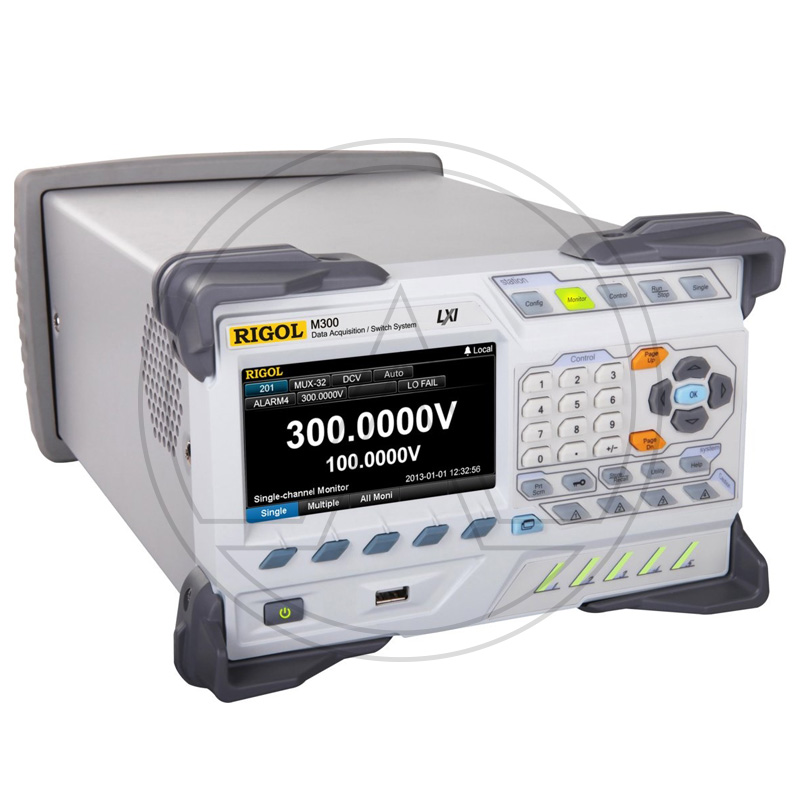

Rigol M301

The M301 Data Acquisition System is designed for automated multichannel measurement and switch applications. This includes environmental measurements like temperature for burn in tests as well as voltage, frequency, or resistance measurements from a wide variety of sensors used from research to production test.

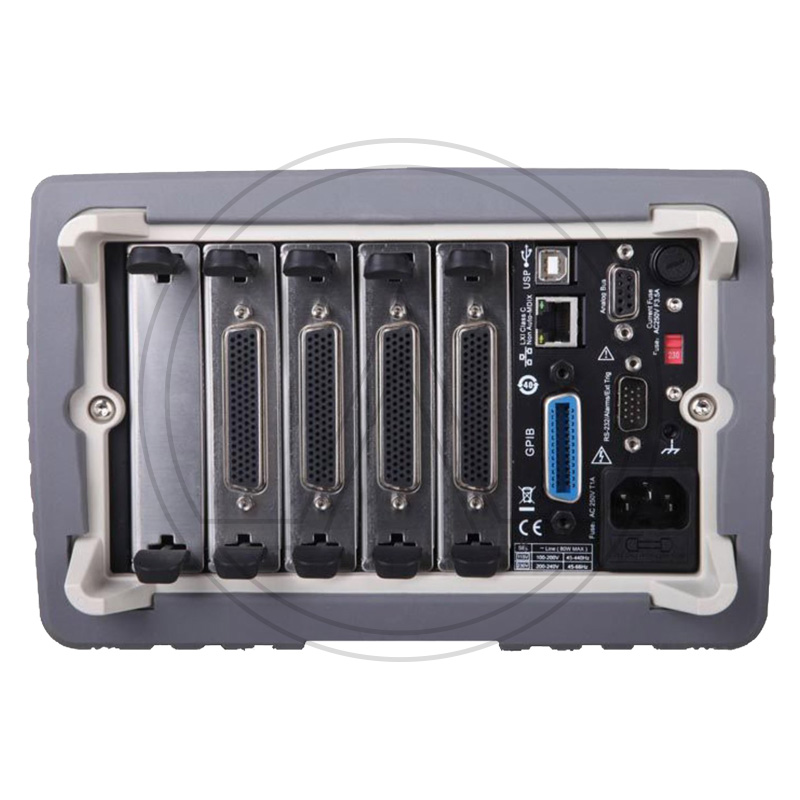

The M300 series data acquisition/switch system provides 5 slots to accept any combination of 11 kinds of plug-in modules, including a DMM module, multiple multiplexers, an actuator, a matrix switch module and a multifunction module. With its modular structure, it combines precision measurement capability with flexible signal connections and can provide versatile solutions for the applications that require multiple points or signals to be tested. This can be especially useful in product performance testing during the R&D phase, and automatic test during production process.

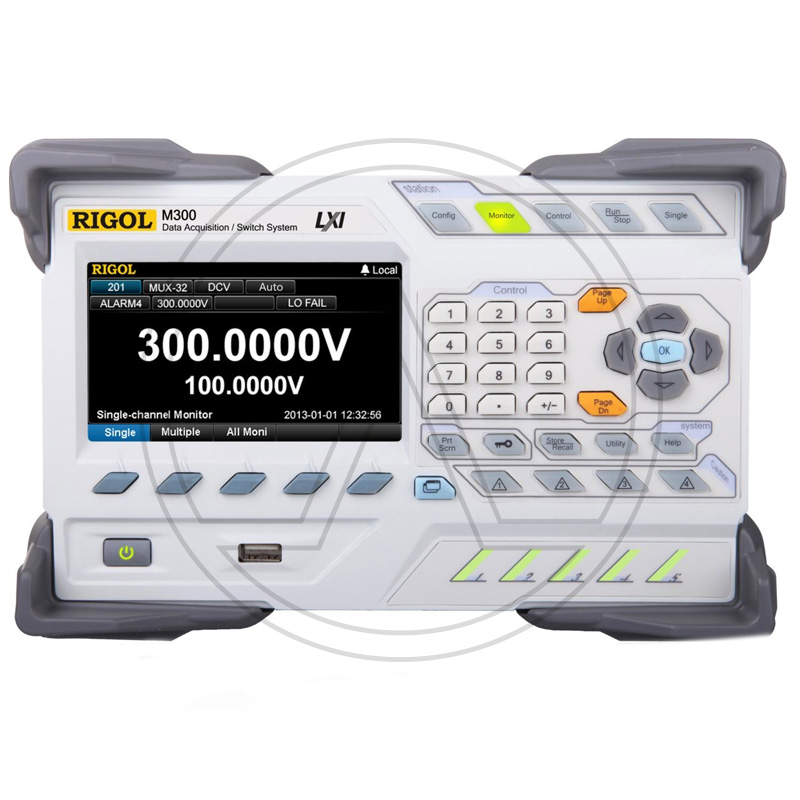

It comes with a 4.3 inch high-resolution color LCD, user-friendly interface design, easy-to-use keyboard layout as well as clear key backlight and operation prompts. The M300 is extremly flexible and easy to use. For remote control versatility, it comes with RS232, USB, LAN and GPIB interfaces standard.

Key Applications
CJC Compensated Temperature measurements
Voltage and 2-Wire Resistance
4 Wire Resistance Measurements
Current Measurements
Matrix applications for flexible signal routing
Mixed and Multifunction Applications (Digital I/O, DAC, Totalizer)
Actuator Systems (up to 300 Vrms / 2 Arms, 60 VA, without connection to the DMM)

Special Features
Up to 320 switch channels per mainframe
Can run independently without PC
USB data logging
Interval scanning with storage of up to 100,000 time-stamped readings
6½ digit DMM can be inserted into any slot. It also supports multiple measurement functions, including DCV, DCI, ACV, ACI, 2WR, 4WR, PERIOD, FREQ, TEMP (Thermocouple, Thermistor and RTD) and any sensor
4.3 inch color LCD with friendly interface and built-in help system
Powerful PC control and analysis software
Standard multiple communication interface: USB Device, USB Host, GPIB, LAN(LXI Core Device 2011) and RS232
