KENWOOD CS-4125

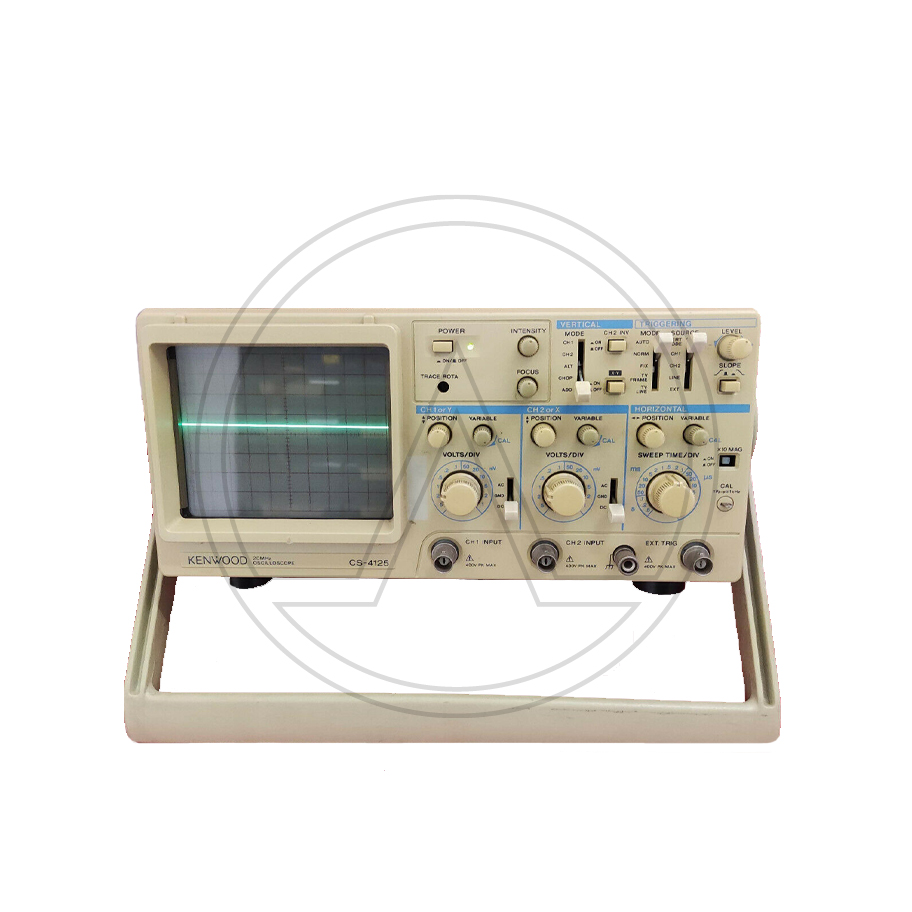

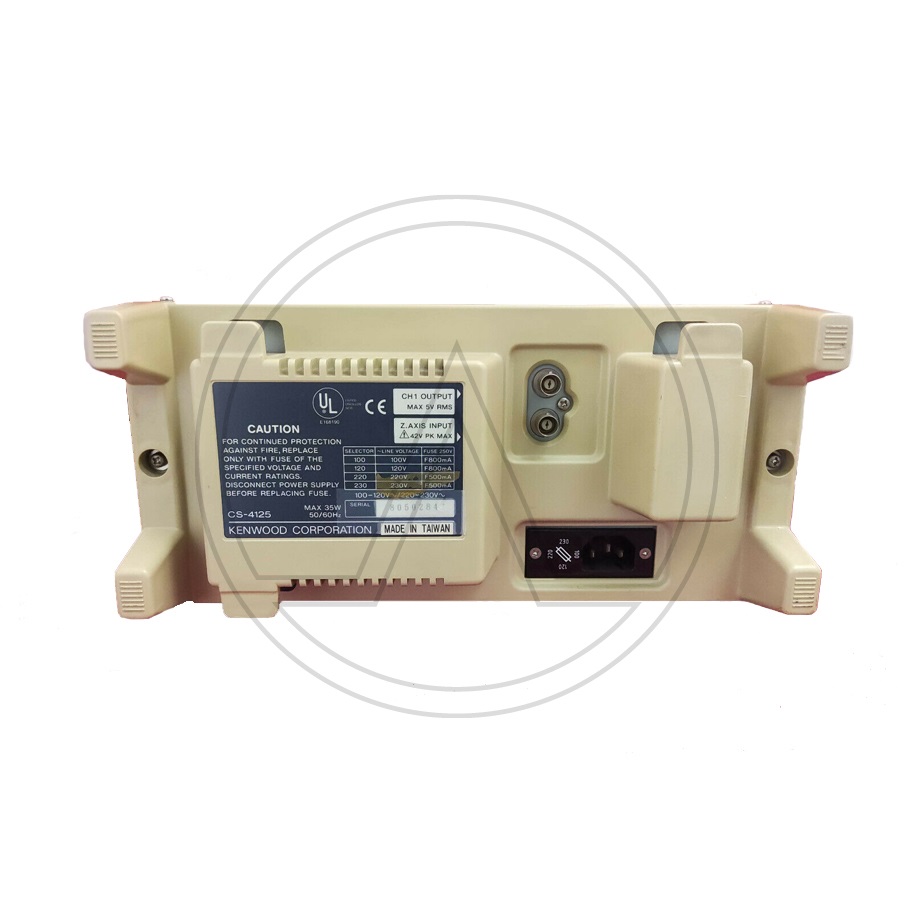

Kenwood CS-4125 20MHz 2-Channel Analog Oscilloscope. Kenwood CS-4125 20MHz 2-Channel Oscilloscope Features High reliability with Kenwood Original Hibrid ICs High-intensity CRT (12 kV) (with scale illumination) Dynamic range with a headroom for accurate waveform display without distortion High sensitivity of 1 mV/div (DC to 5 MHz) Maximum sweep rate of 20 ns/div (x10 MAG) FIX sync One-touch TV sync Convenient VERT mode One-touch ALT/CHOP switching X-Y Mode Vertical axis signal output connector Waveforms can be observed by applying intensity modulation. Added or subtracted waveforms can be observed. The trace inclination can be corrected with the front panel operation. Relay-type attenuators with long life and excellent operability are used. Kenwood TMI Corp. CS-4125 Oscilloscope, Analog: 20MHz, 2 Channel (Stand alone) The Kenwood TMI Corp. CS-4125 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Kenwood TMI Corp. CS-4125 oscilloscope’s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions,
Datasheet
