HAROGIC SAE-200

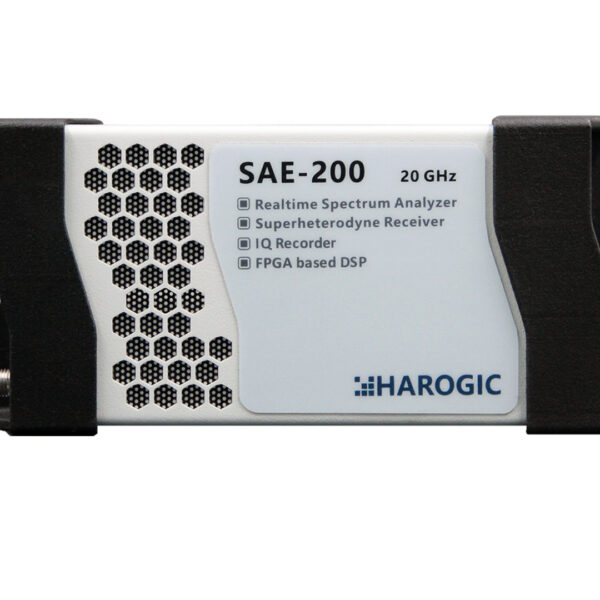

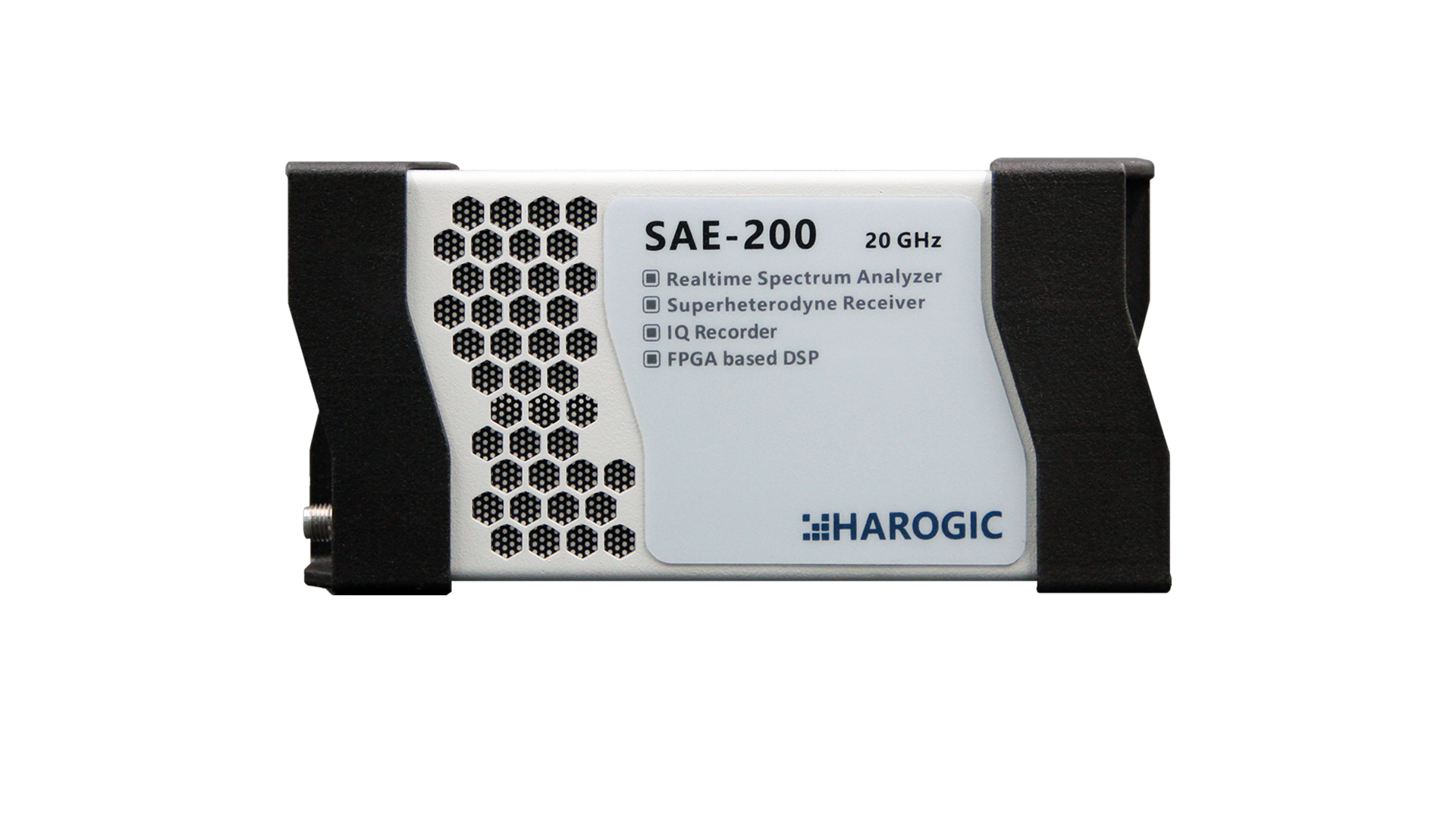

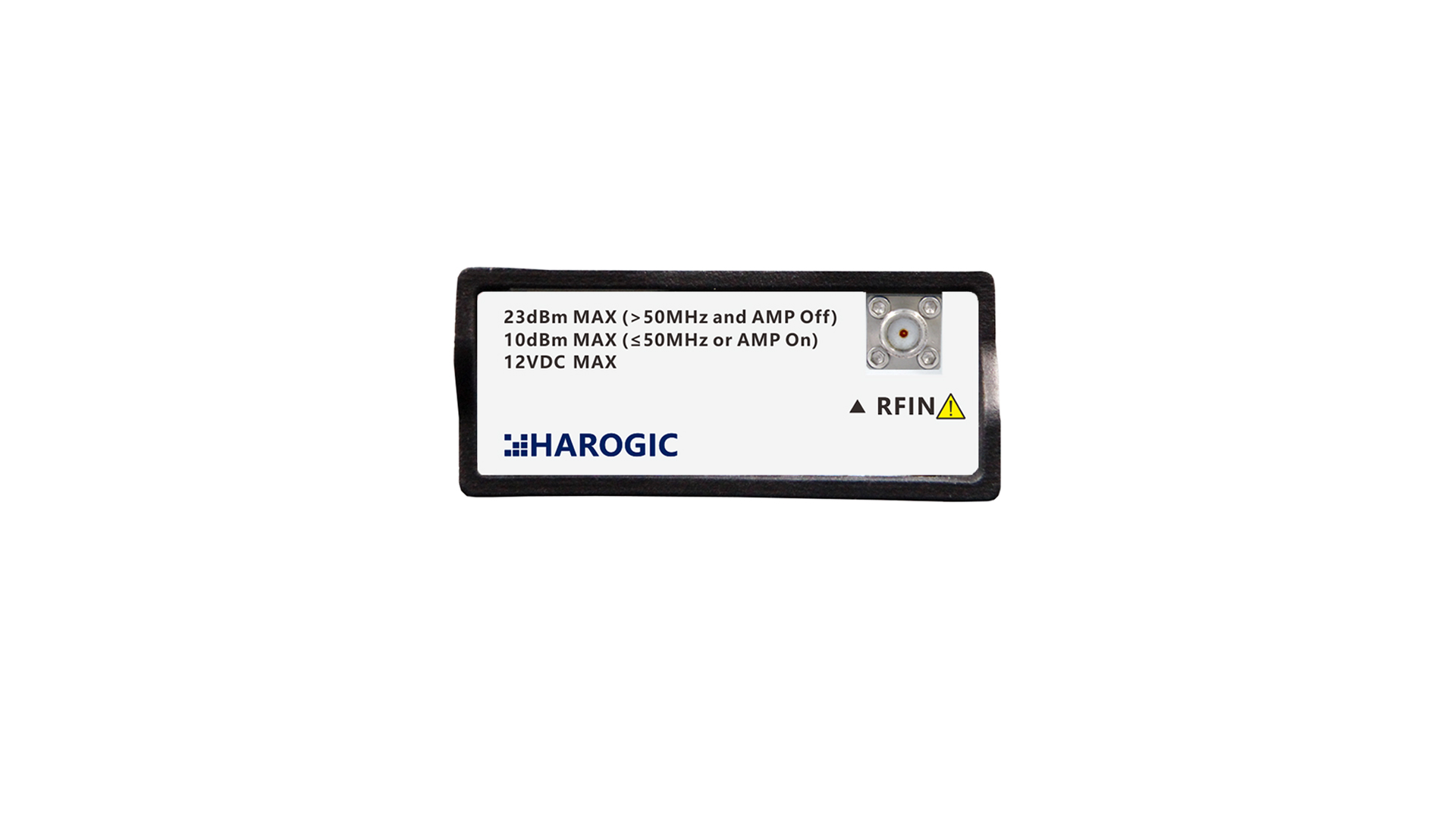

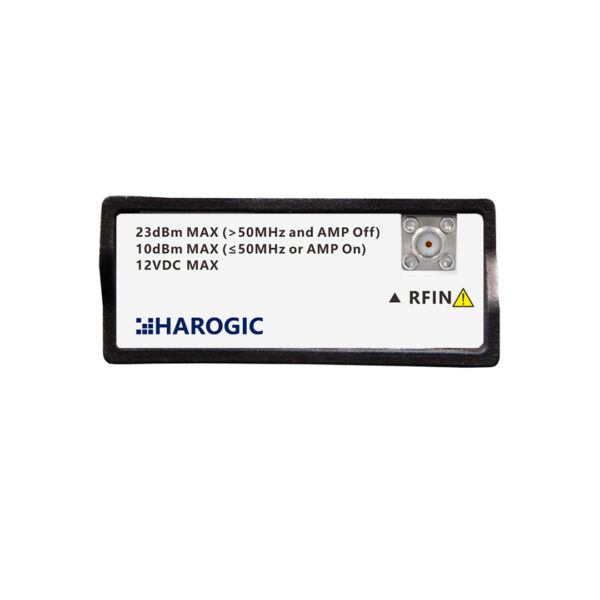

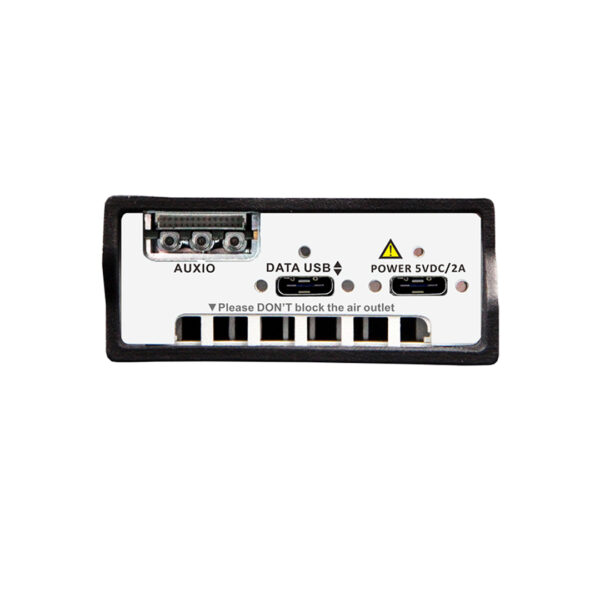

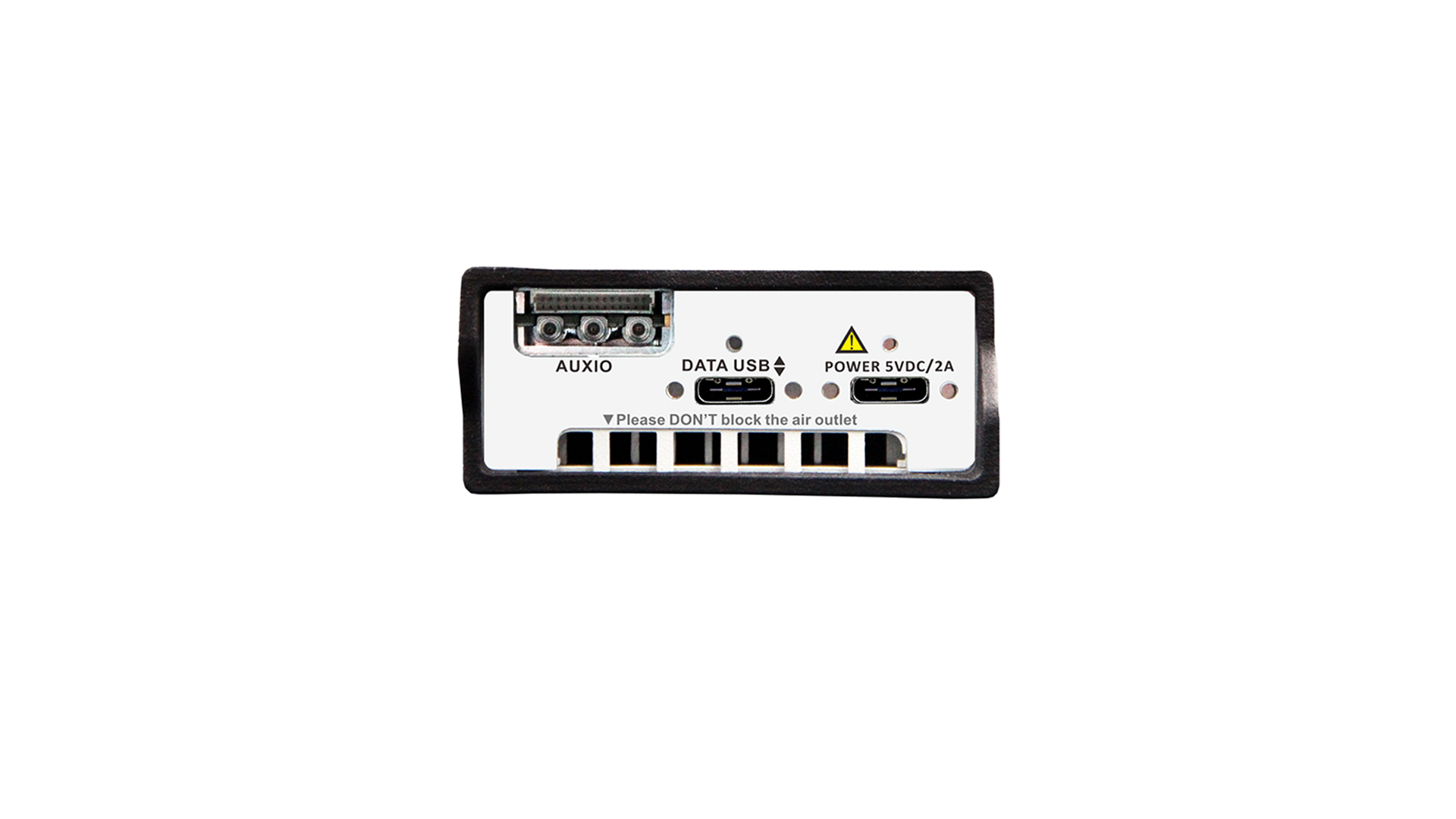

SAE-200 20 GHz Compact Real-Time Spectrum Analyzer/Receiver

Main features:

9 kHz~20 GHz real-time spectrum analyzer/receiver
Superheterodyne digital receiver architecture, 19segments pre-selected filter
9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB
9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB
100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed
FPGA based digital signal processing
Weight 195 grams (core module), size 125 × 60 × 15 mm, power consumption 10-14 W
Highly compatible API interfaces and SAStudio4 GUI
Compatible with ARM and x86 processors, Linux and Windows operating systems
Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option)
Built-in OCXO (option)

Available options
Code Name Option Explanation
01 Built-in OCXO reference clock (hardware) Providing a reference clock with better stability than the standard configuration, with a temperature drift of<0.2 ppm, increasing the overall power consumption by 0.8 W 10 MUXIO IO extended board (accessory) Converting the MUXIO interface into multiple MMCX and board to wire connector to facilitate the connection of trigger input, output, and other signals 11 External GNSS (accessory) Standard GNSS module connected to MUXIO 12 External high precision GNSS (accessory) High precision GNSS module connected to MUXIO 13 External GNSS disciplined OCXO reference clock (accessory) Providing GNSS disciplined reference clock and 1PPS, increasing the overall power consumption by 1.1W 20 Extended temperature class (hardware) Extending the operating temperature to – 20~70 ℃ 21 Wide temperature class (hardware) Extending the operating temperature to – 40~70 ℃ Datasheet
