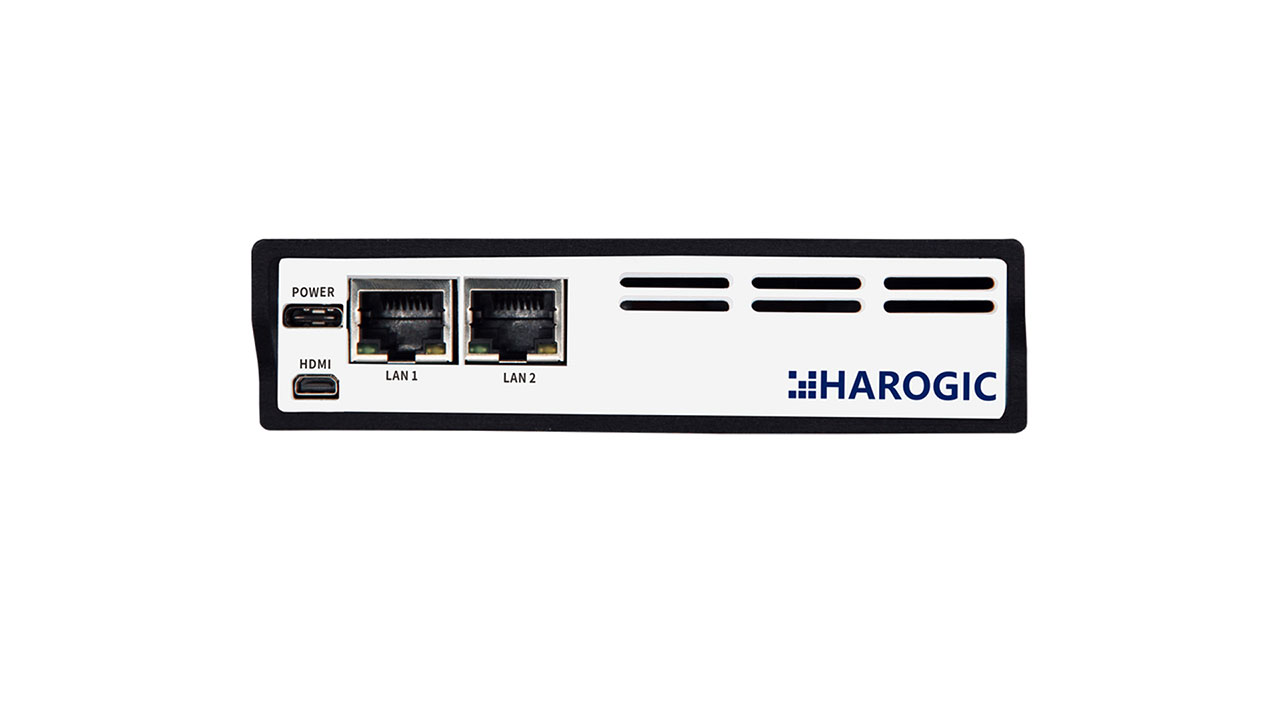

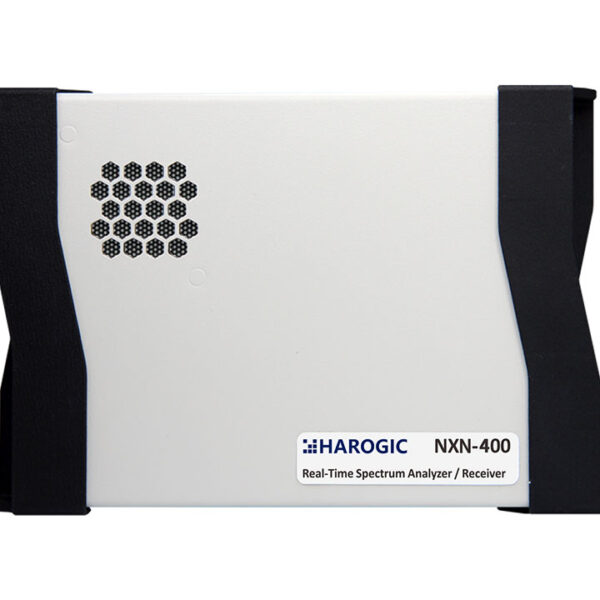

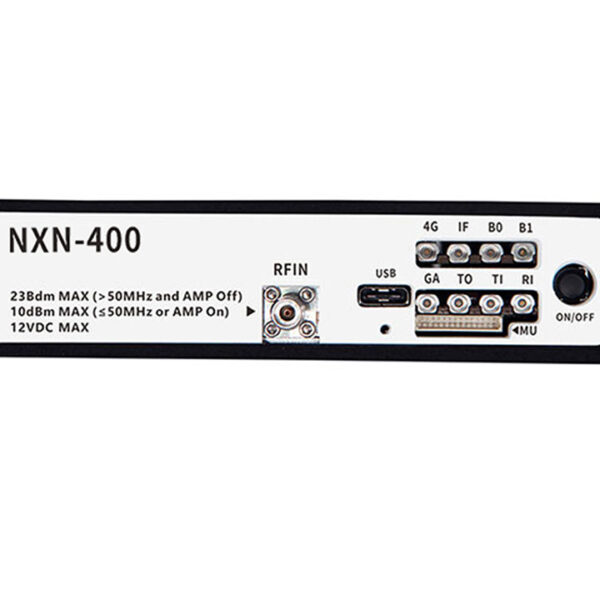

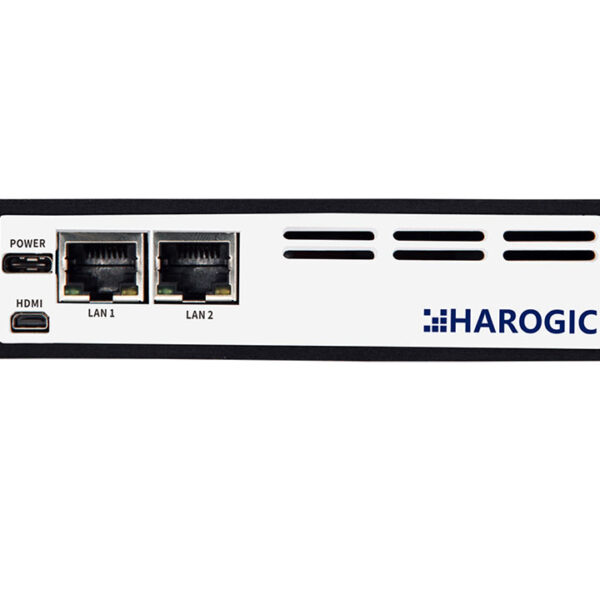

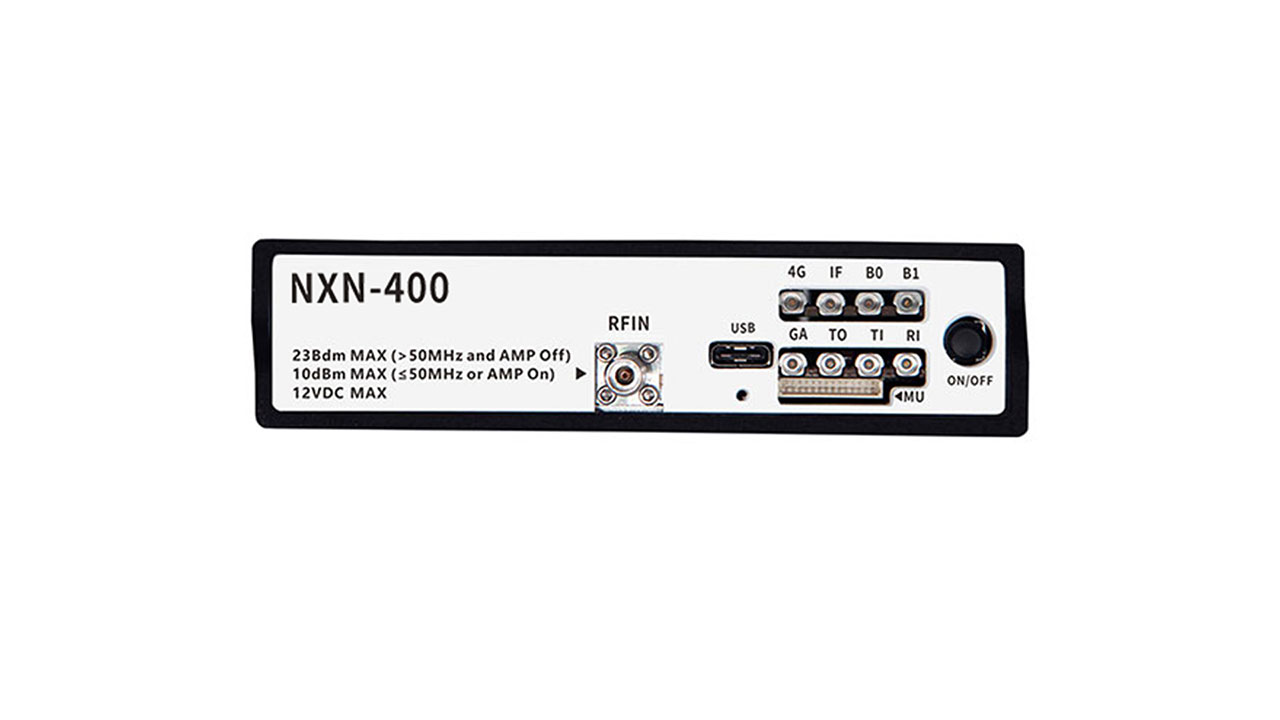

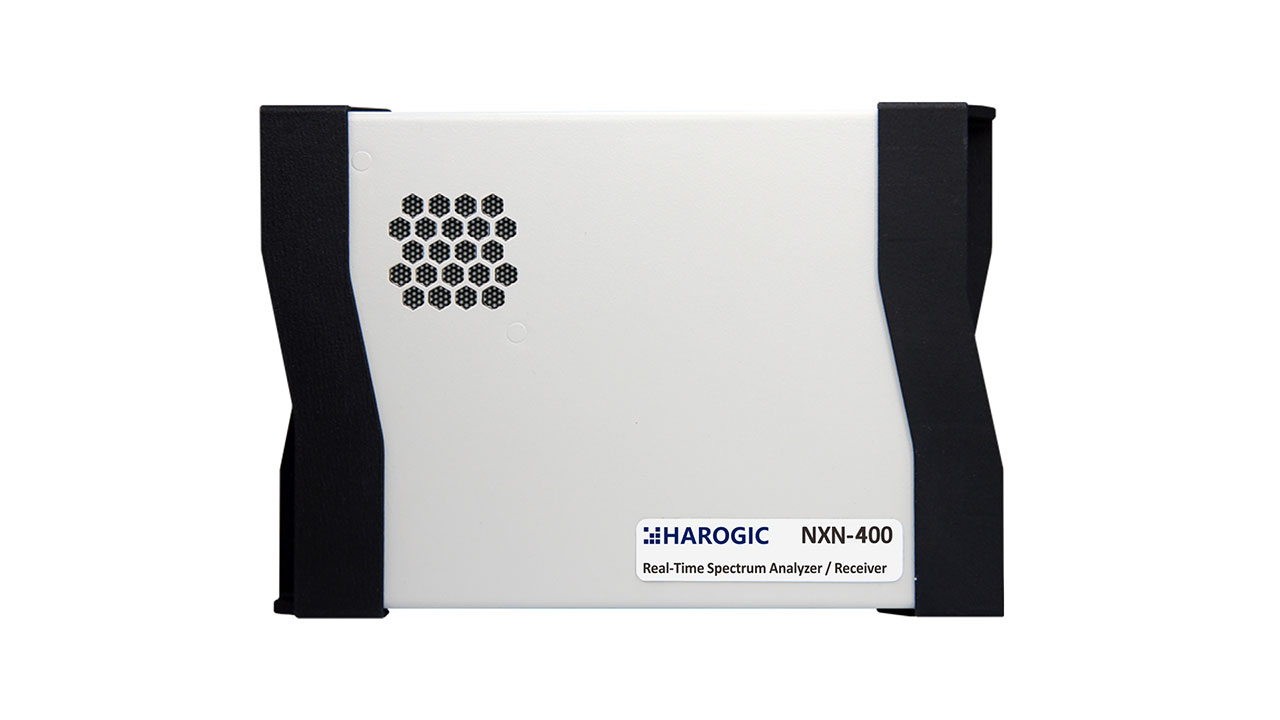

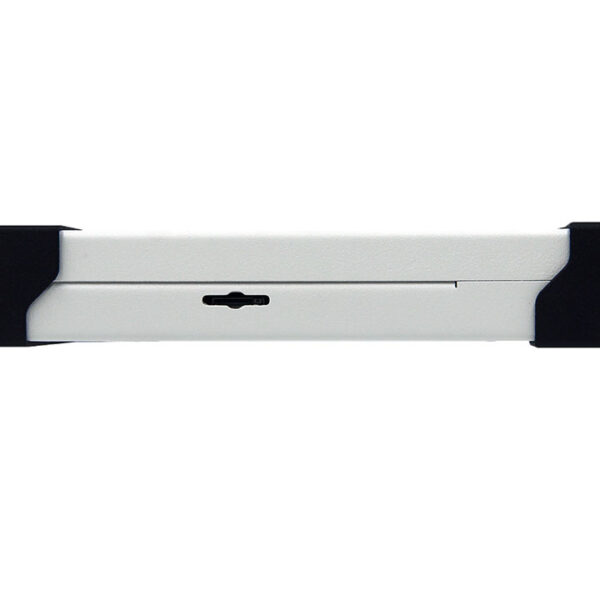

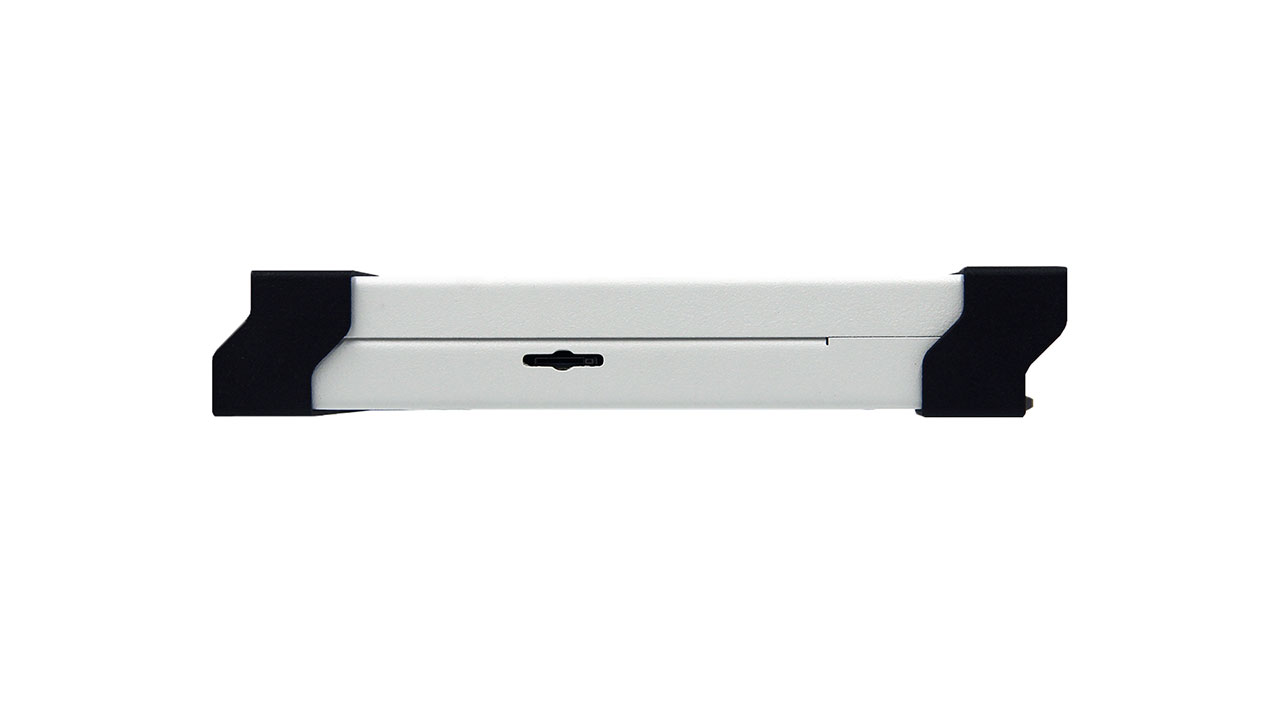

HAROGIC NXN-400

Main features:

9 kHz-40 GHz real-time spectrum analyzer
Superheterodyne digital receiver architecture, 14 segments pre-selected filter
9 kHz~40 GHz typical image suppression >75 dBc, typical IF rejection>75 dBc
100 MHz analysis bandwidth with adjustable sampling rate, 291.6 GHz/sec sweep speed
FPGA based digital signal processing
Weight 660 grams, size 167×117×28 mm, power consumption: 18 W
1000M/100M Ethernet interface
Build-in multimode GNSS
Provides 1PPS, latitude and longitude information and timestamp
Highly compatible API interfaces and SAStudio4 GUI
Remote master of ARM and x86 processor are supported
Linux and Windows are supported
Operating temperatures range from -20 ℃/-40 ℃ to 65 ℃ (option)
Built-in OCXO (option) or GNSS disciplined OCXO (option)
Built-in 4G data module (option)
