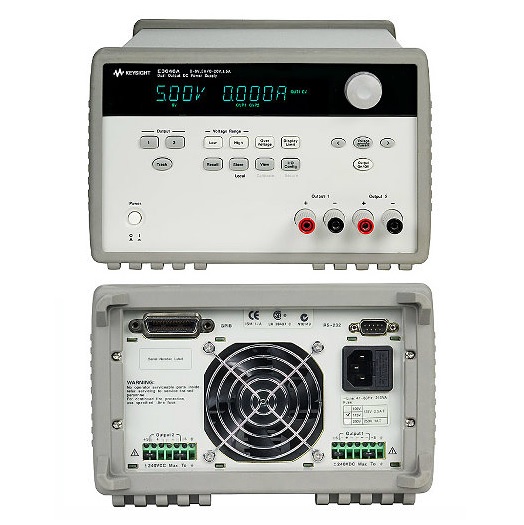

HP-Agilent/Keysight E3649A

Keysight basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use- low output ripple and noise- and built-in measurements and basic programmable features with GPIB and RS232 interface. The Keysight 97W, multiple output E3649A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package. Output ratings (@ 0°C to 40°C) 2 outputs • Range 1: 0 to 35 V / 1.4 A • Range 2: 60 V / 0.8 A Programming accuracy (@ 25°C ±5°C), ±(% output + offset) • Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A) • Current: <0.2% + 10 mA Ripple & noise 20 Hz to 20 MHz • Normal Mode Voltage: <8 mVpp / 1 mVrms • Normal Mode Current: <4 mArms • Common Mode Current: <1.5 uArms Readback accuracy (@ 25°C ±5°C), ±(% output + offset) • Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A) • Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
