AGILENT E9323A

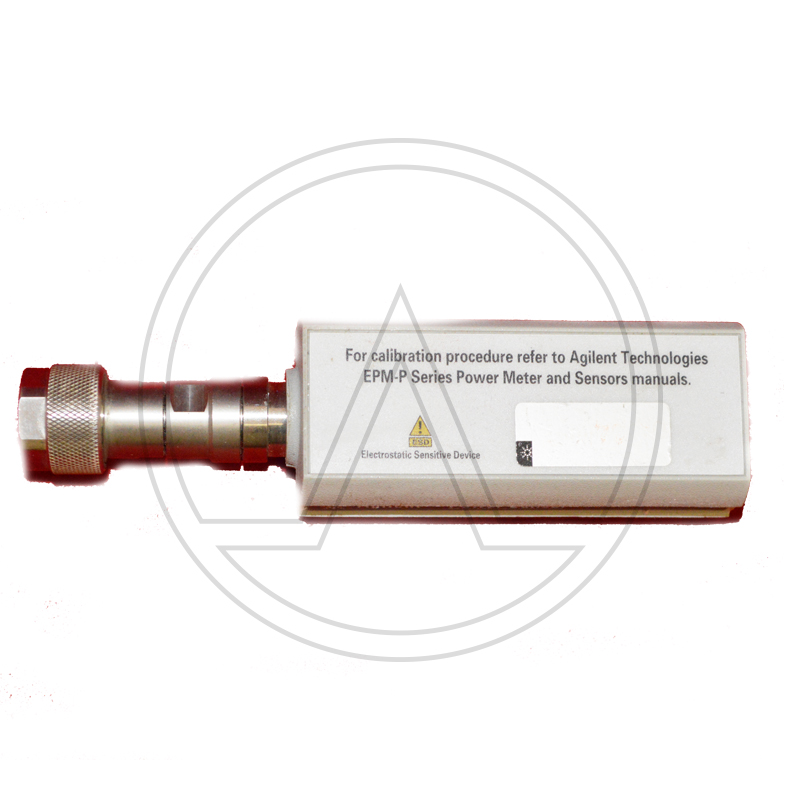

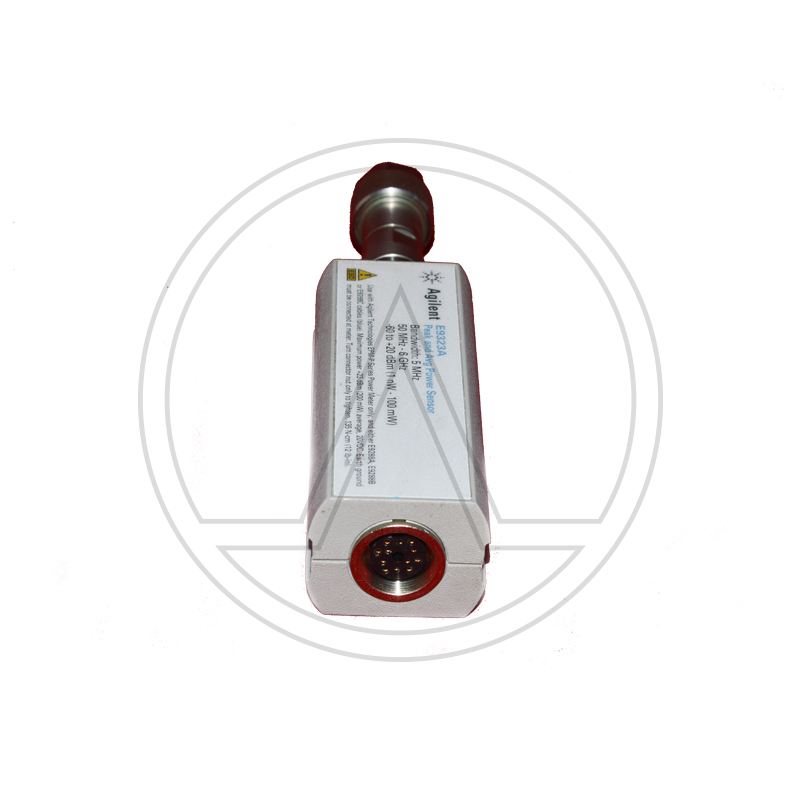

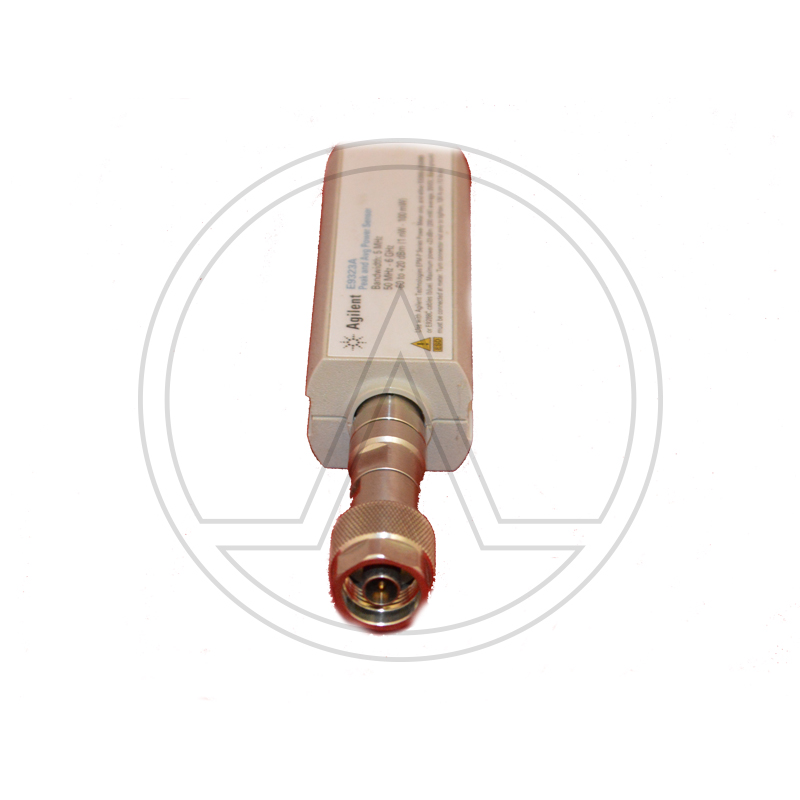

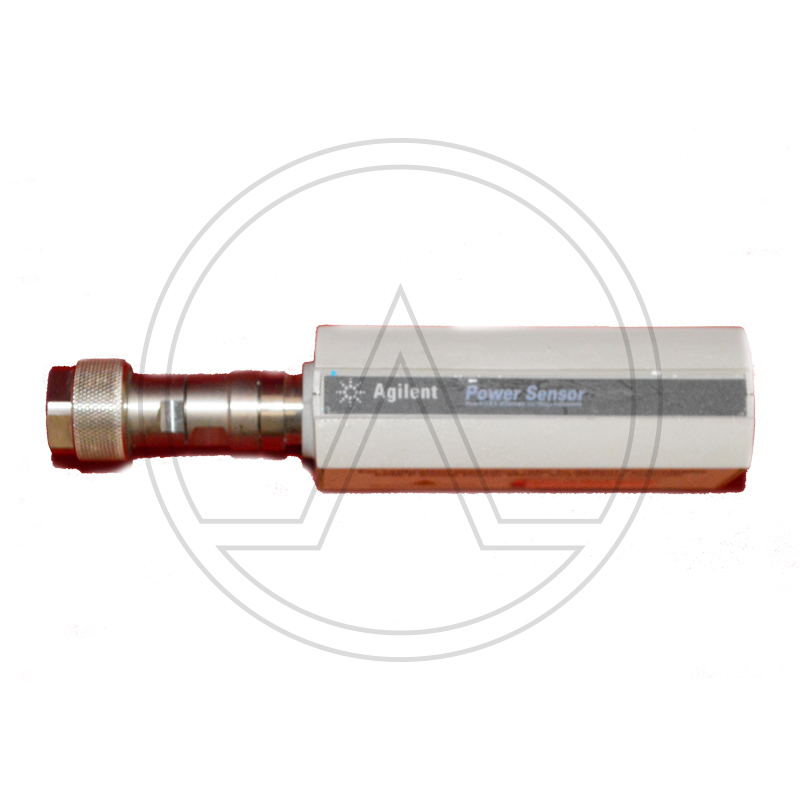

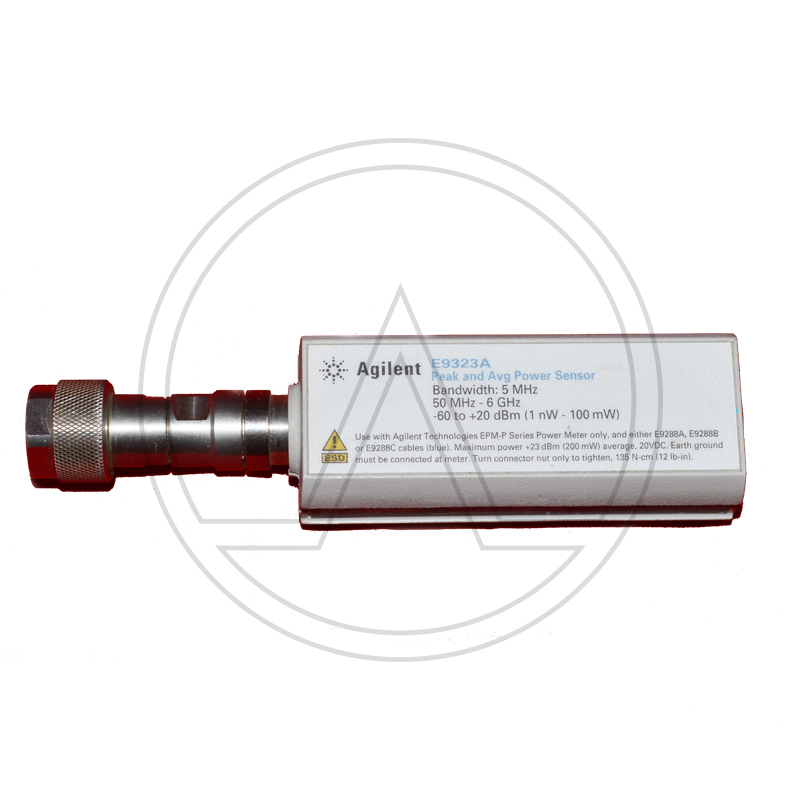

AGILENT E9323A E-Series Power Sensor, 50 MHz to 6 GHz
The E9323A diode power sensor has a 5 MHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on W-CDMA wireless formats such as cdma2000.

Key Features & Specifications:
– 5 MHz video bandwidth, ideal for W-CDMA and cdma2000 applications
– Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
– Wide dynamic range
– Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
– Precision type-N connector as standard
– Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/ 12A) power meters
