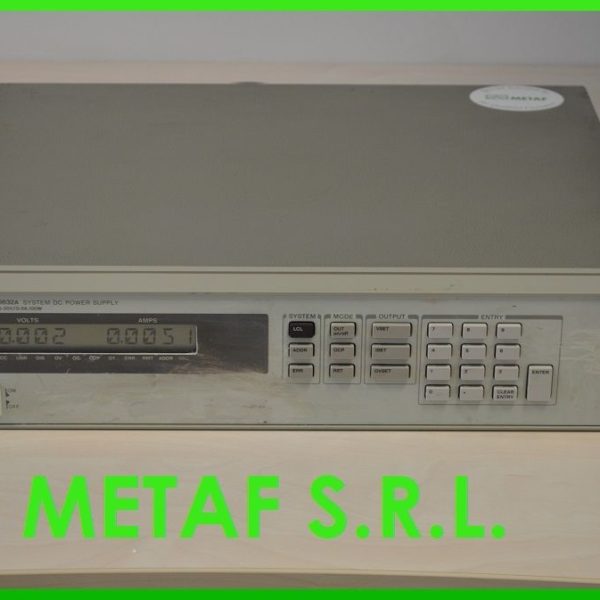

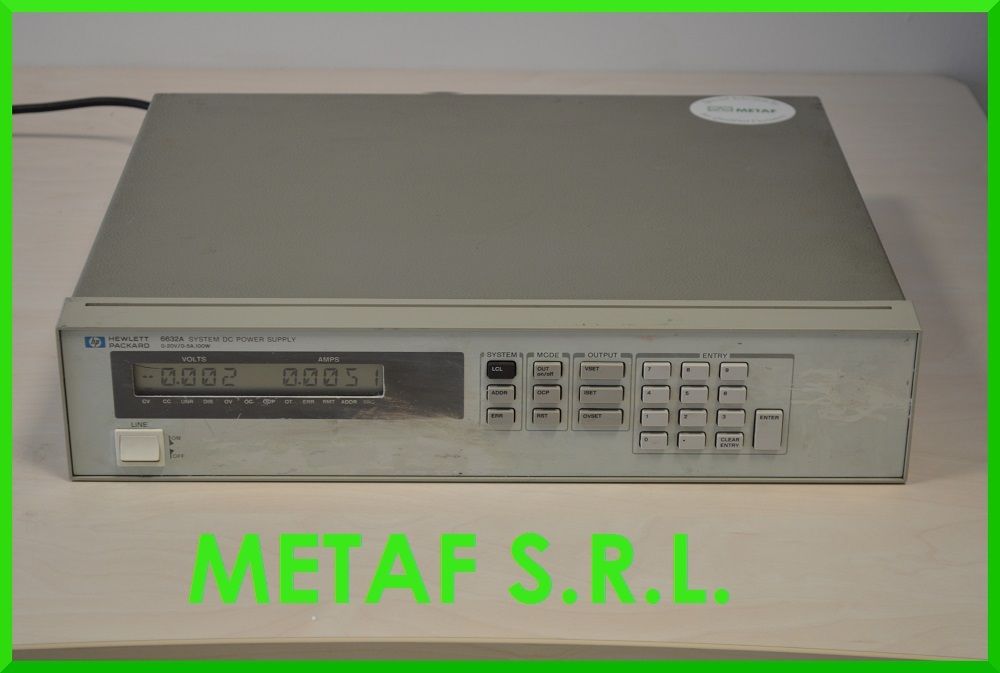

HP-Agilent/Keysight 6632A

The HP Agilent 6632A Power Supply is a 100 Watt, single output, series pass regulated supply rated for up to 20 V @ ±5 A. Output connections are made to the rear panel screw terminals. Either the positive or negative output terminal can be grounded, or the output can be floated up to +/-240 Vdc from the chassis ground. The output voltage can be sensed locally or remotely. When shipped, the supply is jumpered for local sensing. The power supply is a single range unit with the capability of sinking as well as sourcing current. The output can be programmed both locally from the front panel and remotely over the HP-IB.
