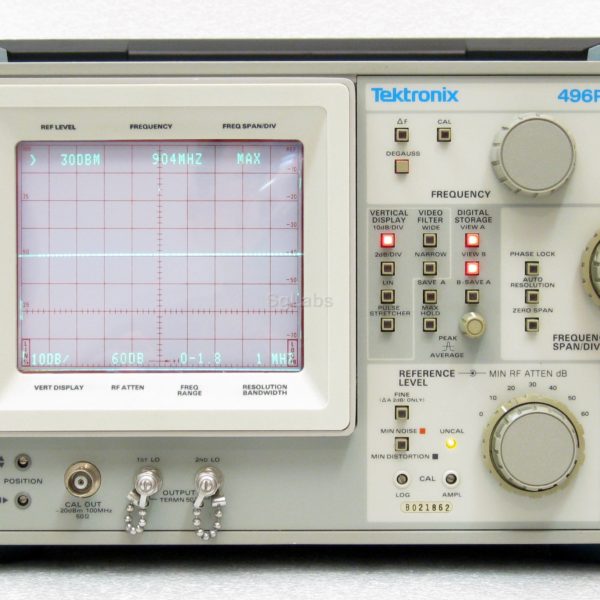

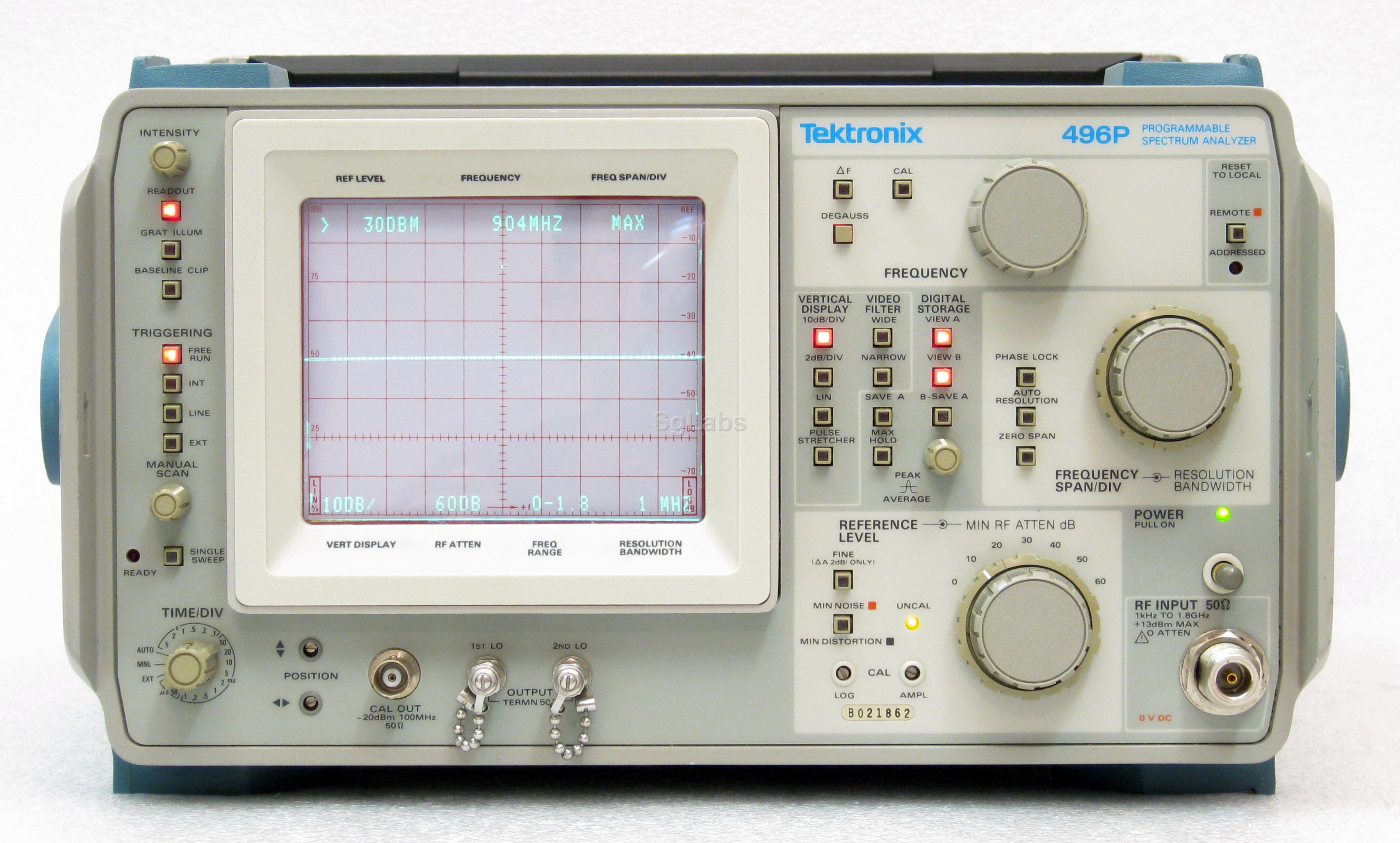

Tektronix 496P

The Tektronix 496P is a rugged portable, digital storage, and programmable Spectrum Analyzer. * Low end frequency limit 1 kHz * High end frequency limit 1.80 GHz * Resolution Bandwidth Min. 30 Hz * Resolution Bandwidth Max. 1 MHz * Fully programmable via the IEEE-488 interface, excellent choice for ATE systems * 80 dB dynamic range * Amplitude calibrated in dBm or dBmV * Variable resolution bandwidth from 1MHz to 30Hz. 50 ohm/75 ohm selectable inputs * Amplitude Comparison in 0.25 dB steps * Calibrated amplitude in dBm or dBmV * Automatic phase lock stabilization reduces incidental FM to 10Hz p-p * Phase noise sidebands are at least -75 dBc at 30 times the resolution bandwidth offset
