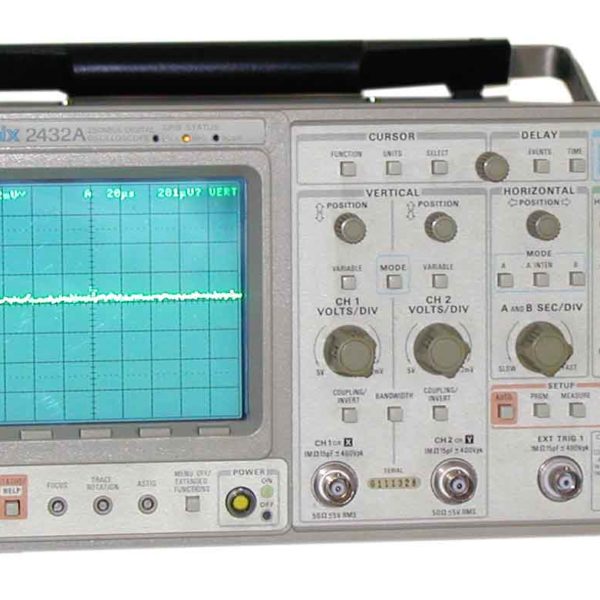

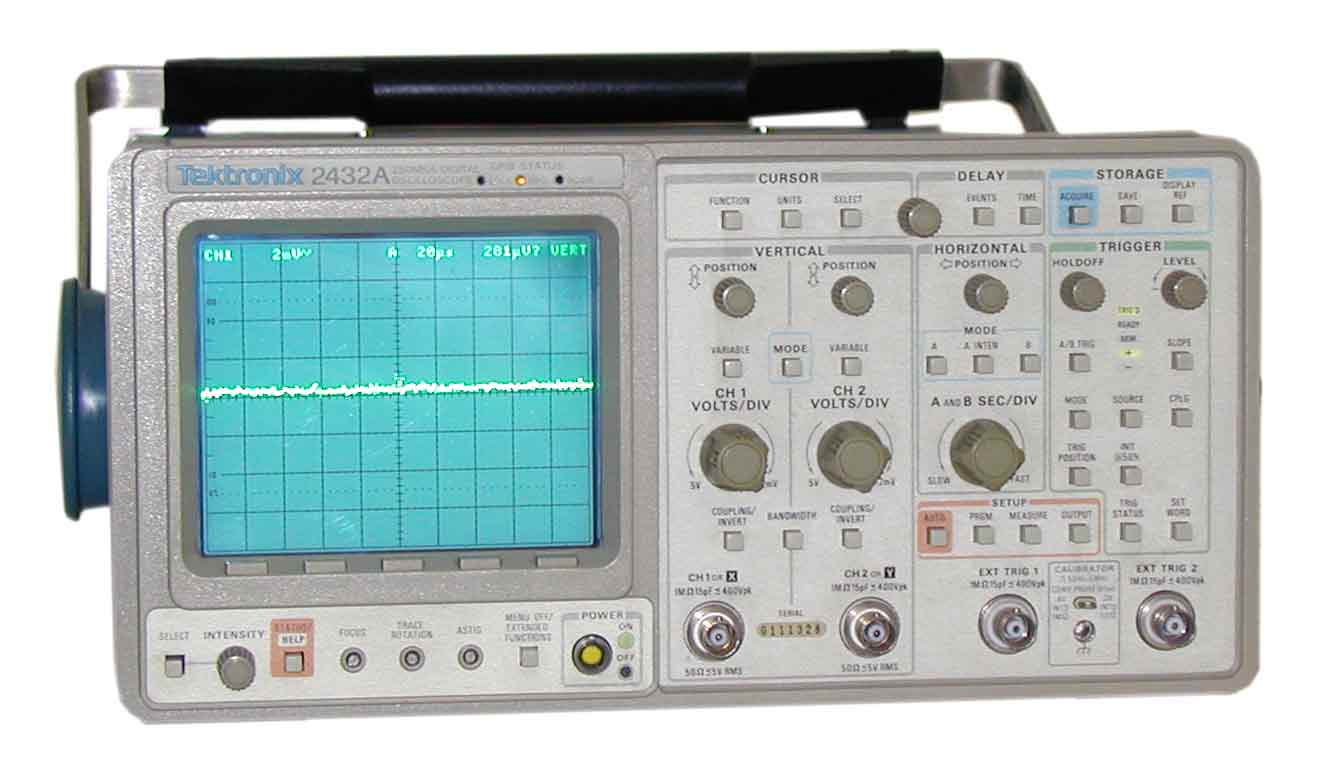

Tektronix 2432A

Digital Storage Oscilloscope – 2 channels -DC to 300MHz bandwidth – Max. Single Shot bandwidth 100 MHz – Min/Max. Vertical Sensitivity 2 mV/div to 5 V/div – 250MSa/s sampling rate – Number of Bits 8 bits – Input Impedance 1 MOhm – 1024-points record length per channel – 2ns glitch capture – Extensive triggering capabilities – Direct printer / plotter output – Built-in automatic measurements – CRT display – GPIB – Display Type CRT Monochrome (12.7 cm)
