Rigol

100 MHz, 4 ch, 4 GS/s
The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.

The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.
200 MHz, 4 ch, 4GS/s

Rigol DS4024E è un oscilloscopio a memoria digitale a quattro canali di altissima qualità. Offre una frequenza di campionamento in tempo reale fino a 2 GSa / s (per canale) e una larghezza di banda fino a 200 MHz.

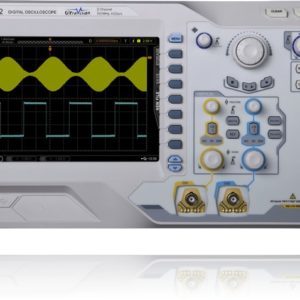

Questo standard ad alte prestazioni non solo garantisce la cattura di segnali istantanei in tempo reale, ma osserva anche i dettagli di segnali ripetuti. Il DS4012 ha una frequenza di aggiornamento fino a 110.000 wfms / s, consentendo agli utenti di acquisire segnali istantanei e segnali anormali più rapidamente. Aiuta anche a migliorare la capacità di catturare la forma d'onda e ad accelerare il decorso di un circuito di debug.

Altri vantaggi: display LCD a colori da 9 “, display a forma d'onda brillante e vivido, modalità di trigger versatili: pendenza, alternativa, salita e discesa, consente agli utenti di stabilizzare il segnale più facilmente.Nel contesto economico, la DS4012 ha chiaramente il più alto standard di prestazioni e la più grande numero di funzioni, rendendolo un oscilloscopio al top della gamma.

Attenzione: tutti i DS / MSO4000 sono dotati di una nuova ventola che è molto più silenziosa di prima!

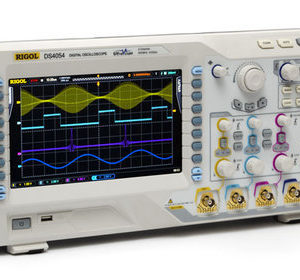

500 MHz, 4ch, 4GS/s
The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields. – 500 MHz bandwidth – 4 GSa/s sample rate – 4 Analog channels available – 140 million memory points, standard – 110,000 Waveforms per second – Original Ultravision technology – Hardware allows for real-time, continuous waveform recording and waveform analysis.

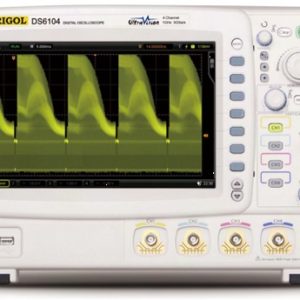

DSO with 1GHz bandwidth and 5GSa/s.
The Rigol DS6104 is a very high quality four channel digital storage oscilloscope. It offers up to 5GSa/s real-time sample rate and up to 1GHz bandwidth. These high performances ensure not only to capture real-time instantaneous signal, but also to observe details of repeated signal. DS6104 have up to 120.000 wfms/s refresh rate, which enable users to capture instantaneous signal and abnormal signal more quickly, to enhance waveform capturing ability, and to expedite circuit debug course. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes. Other advantages: 10.1″ color LCD, bright and vivid waveform display- versatile trigger modes: i.e. slope, alternative, rise&fall edge, enable users to stabilize signal more easily. In economical oscilloscope field, DS6104 have no doubt the highest performances, the most functions thus should be engineers’ best choice. Delivery including 4 probes (bandwidth 600MHz), USB cable, pc software, power adapter and manual. General Data Digital Oscilloscope Digital Oscilloscope Rigol DS6104 Display 10,1″ WVGA-Color-LCD Resolution 800 x 480 Pixel Interface 2x USB-host for i.e. USB sticks USB-Device for a PC connection or USB Pict-Bridge printerinterface LAN for network connectivity (LXI compilant) GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module Trigger- and Calibrationoutput 10MHz reference clock In-/Out VGA interface to connect to an external monitor or projector Size in clarification Weight in clarification Supported operation systems in clarification Oscilloscope Functions Oscilloscope Functions Digital Oscilloscope Rigol DS6104 Channels 4 Real-time sample rate 5 GSa/s realtime Bandwidth 1 GHz Sampling Modus Normal, average, peak detect Mathematics userdefined, FFT (Fast Fourier Transform) FFT algorithm Rectangle, Hanning, Hamming, Blackman Signal Bus Decoding I²C, RS232, SPI, USB, CAN and FlexRay Signal Digital Oscilloscope Rigol DS6104 Input DC/AC coupling, up to 300 Vrms CAT I Real-time sample rate up to 5 GSa/s realtime Time base in clarification Memory 140Mpts (1 Channel) Filter Hardware LPF, HPF, BPF and BRF Vertical Digital Oscilloscope Rigol DS6104 Analog digital converter (A/D) With the resolution of 8 bits, make sampling on both channels synchronously. Sensitivity range (V/div) in clarification Displacement range in clarification Trigger Digital Oscilloscope Rigol DS6104 Trigger in clarification Signal system and line/field frequency (Video triggering mode) in clarification Triggerfunctions Edge, Pattern, Glitch, Puls width, Sequence, Slew rate, I²C, RS232/UART, CAN, FlexRay, USB, SPI, Video Measurement Digital Oscilloscope Rigol DS6104 Cursor measurement Manual, Track and Auto Measure modes Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall)
